Part Number: 9LXW8 / Vendor ID Number: 87 / Custom:

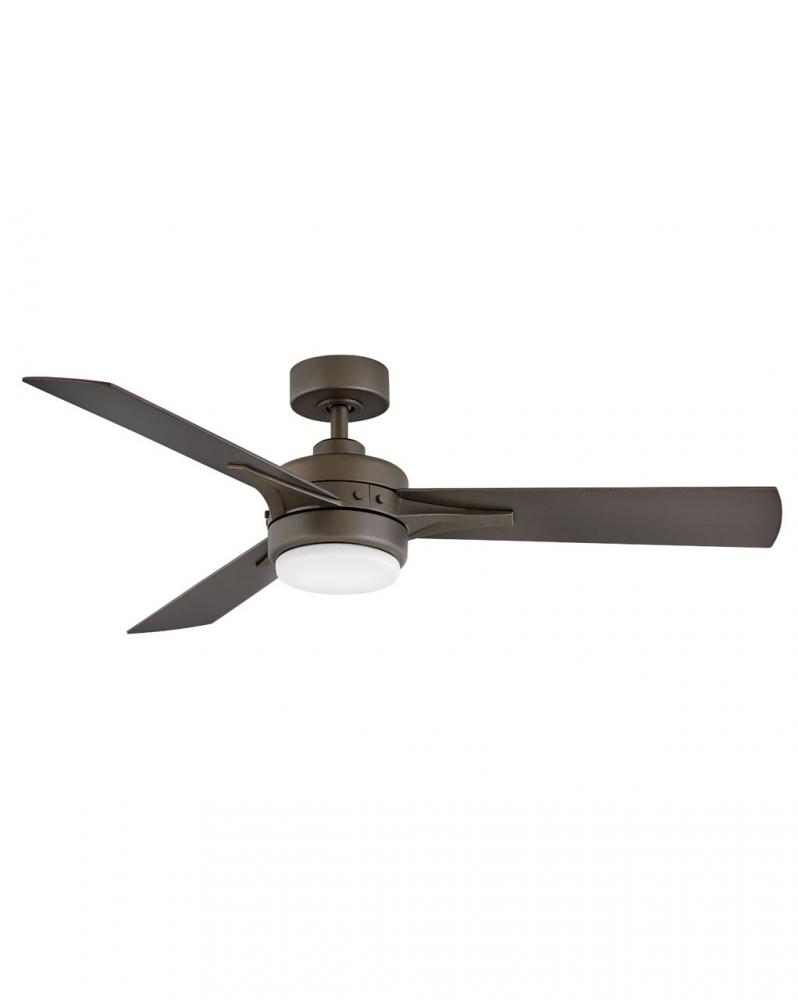

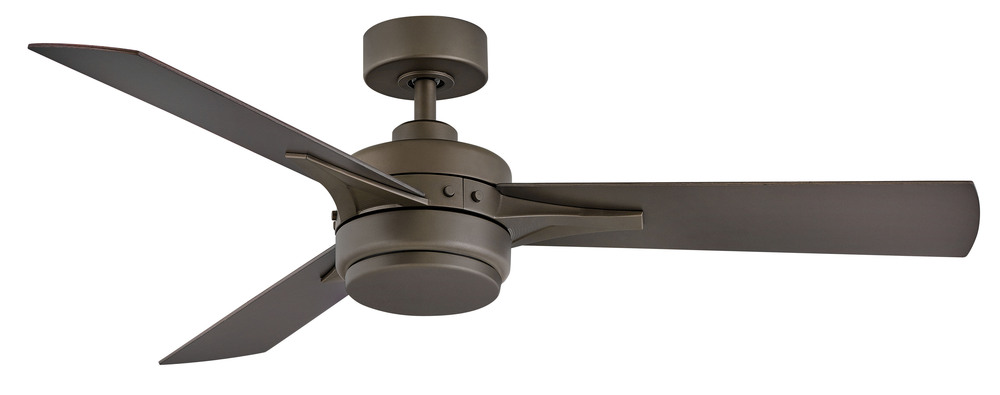

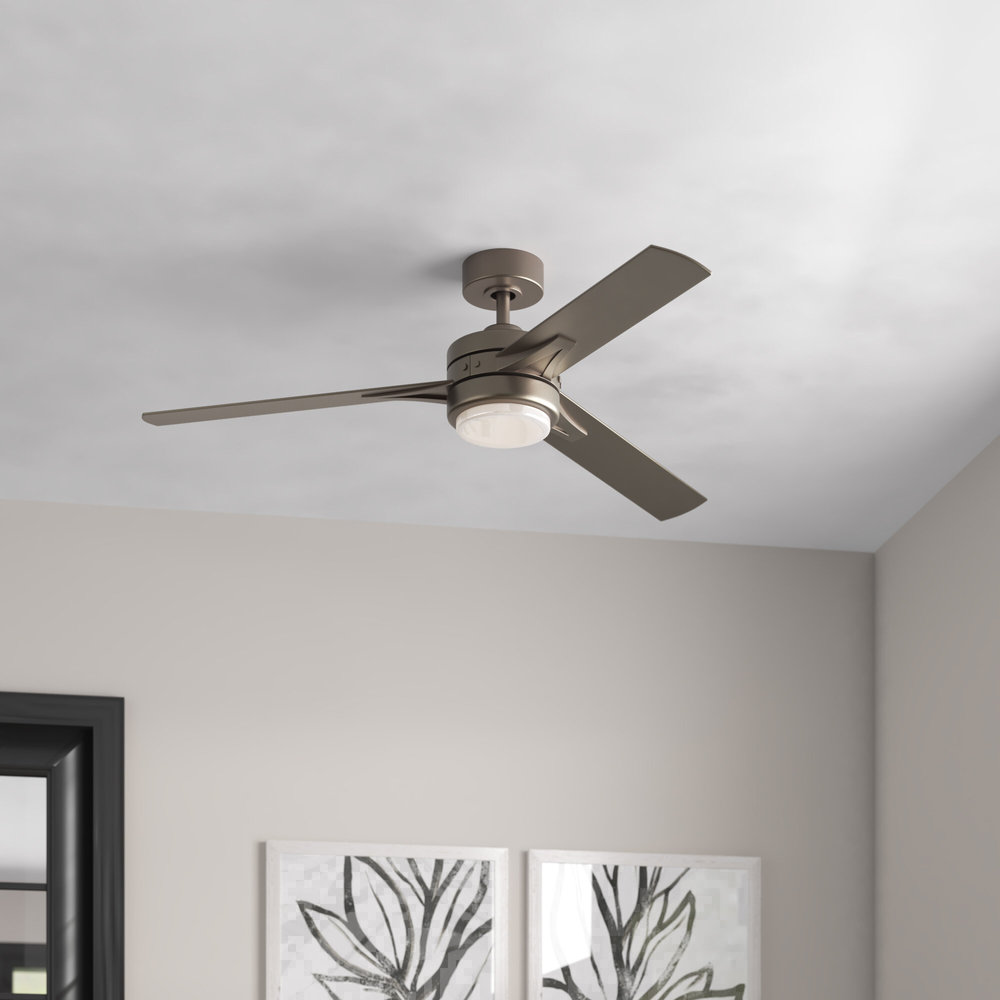

Ventus 52" LED Fan

Ventus 52" LED Fan

502
88
Pack Of: 1
  • Manufacturer has 76 items available.
Qty
Product Specification

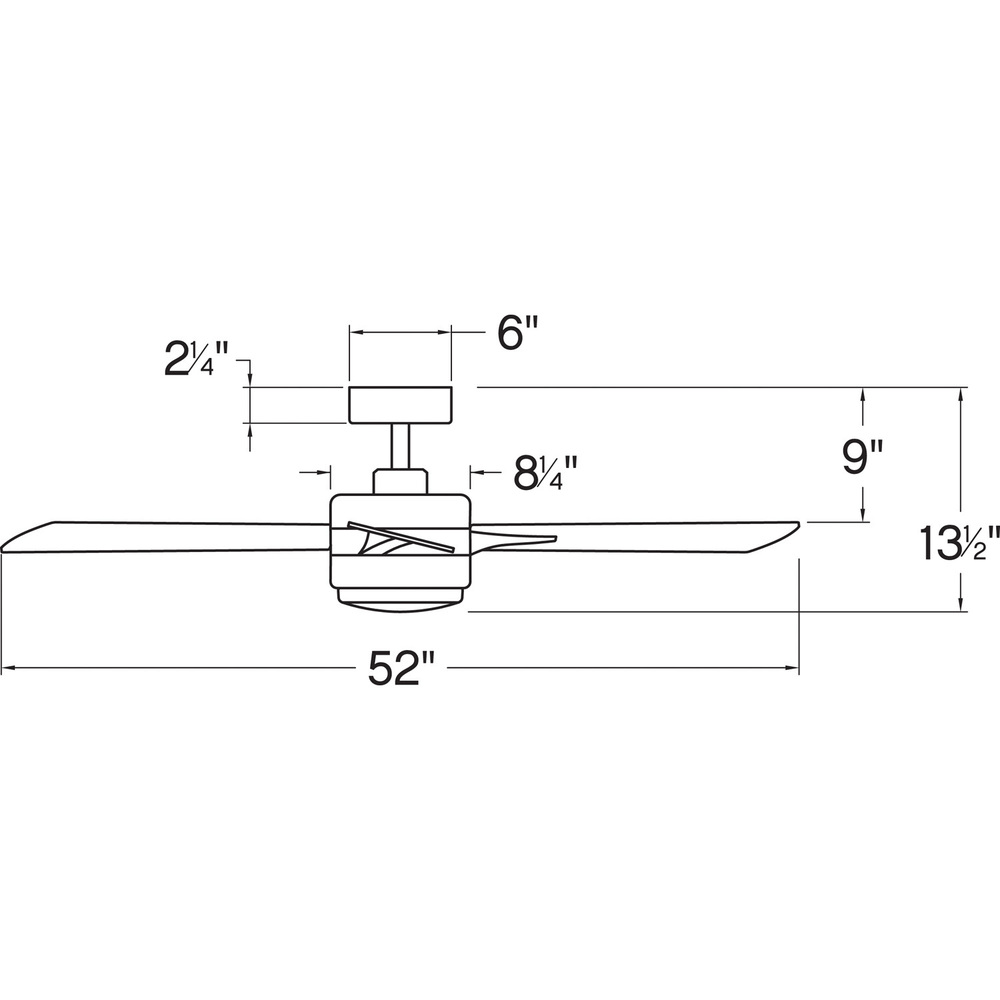

Dimensions
Height: 13.25"
Width: 52.00"
Length: 52.00"
Product Overview
Ventus is the ultimate transitional style guaranteed to cool and complement any interior space. Unique and reversible blades are constructed to ensure maximum performance, while its stylish Metallic Matte Bronze, Matte White and Pewter finish options deliver a sophisticated appearance. Ventus is equipped with integrated LED lighting technology to deliver excellent energy efficiency. Blades are included with every fan.
Product Availability
    Item appears to be in stock and ready to ship
Blade Finish:
Additional options that would change other selections
Reversible Blade Finish:
Additional options that would change other selections
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Transitional
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Dry Rated
LED
Prop 65 /vendors/vendorImages prop65.png
Number of Blades:
3 Blades
Location Rating:
Dry Rated
Category:
Fan
Finish:
Metallic Matte Bronze
Style:
Transitional
Family:
Ventus
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
4779
Amperage:
0.42
Blade Finish:
Metallic Matte Bronze
Blade Pitch:
14
Blade Span:
52
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
6 Dia. x 2.25 D
Introduction Date:
01/01/2020
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
153 x 20
Motor Type:
AC
Ship Carton Height:
10.5
Ship Carton Length:
25
Ship Carton Width:
13.75
Ship Weight:
21.47
Vendor Ship Method:
Parcel
Weight:
20

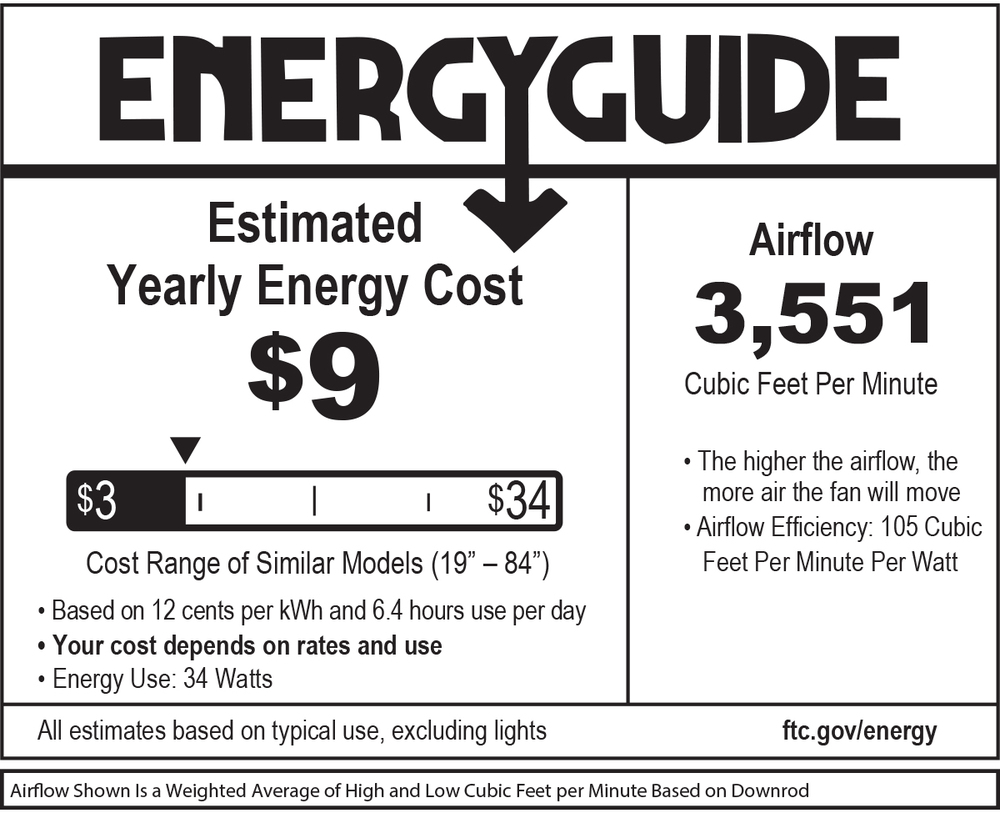

Airflow Avg:
3551
AMPS Avg:
0.32
Avg Energy Use:
33.5
Blade Material:
Wood
Blade Options Available:
No
Blade To Ceiling Height:
9.75
Blades Reversible:
Yes
Bulb CRI:
90
Bulb Included:
Yes

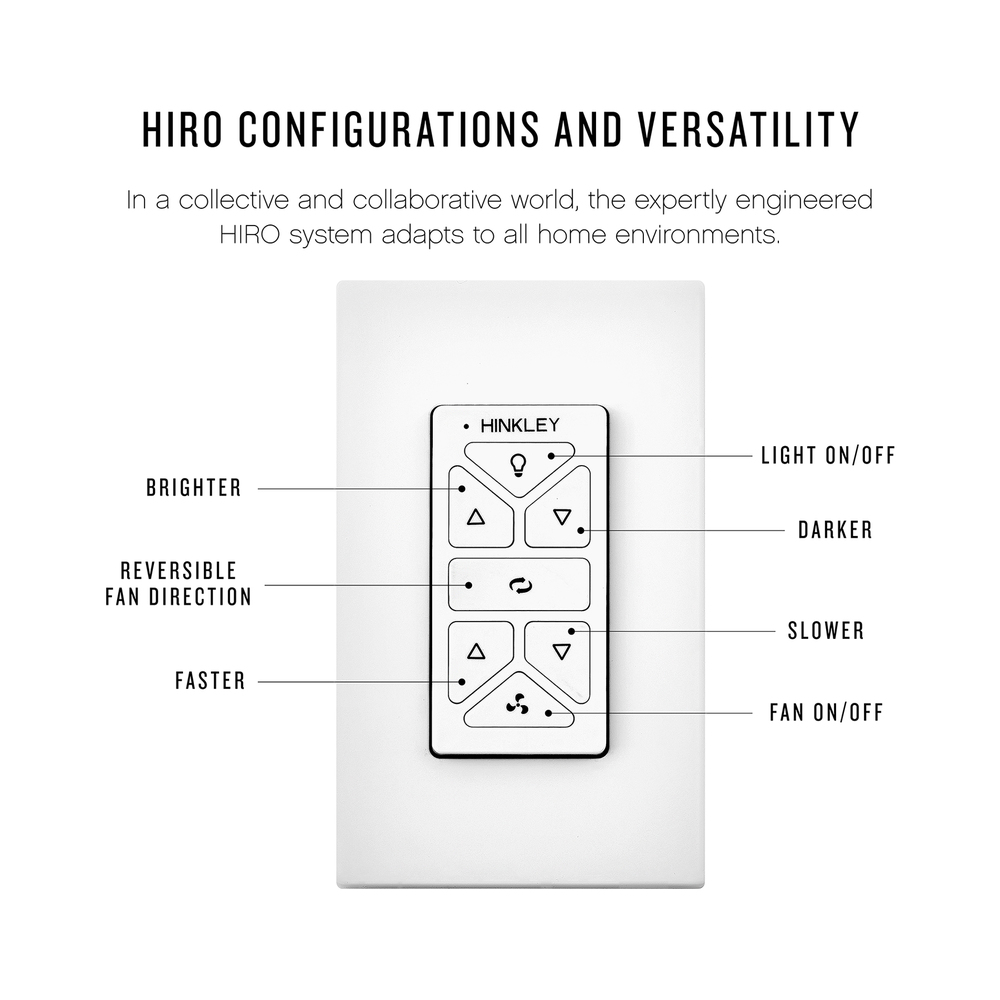

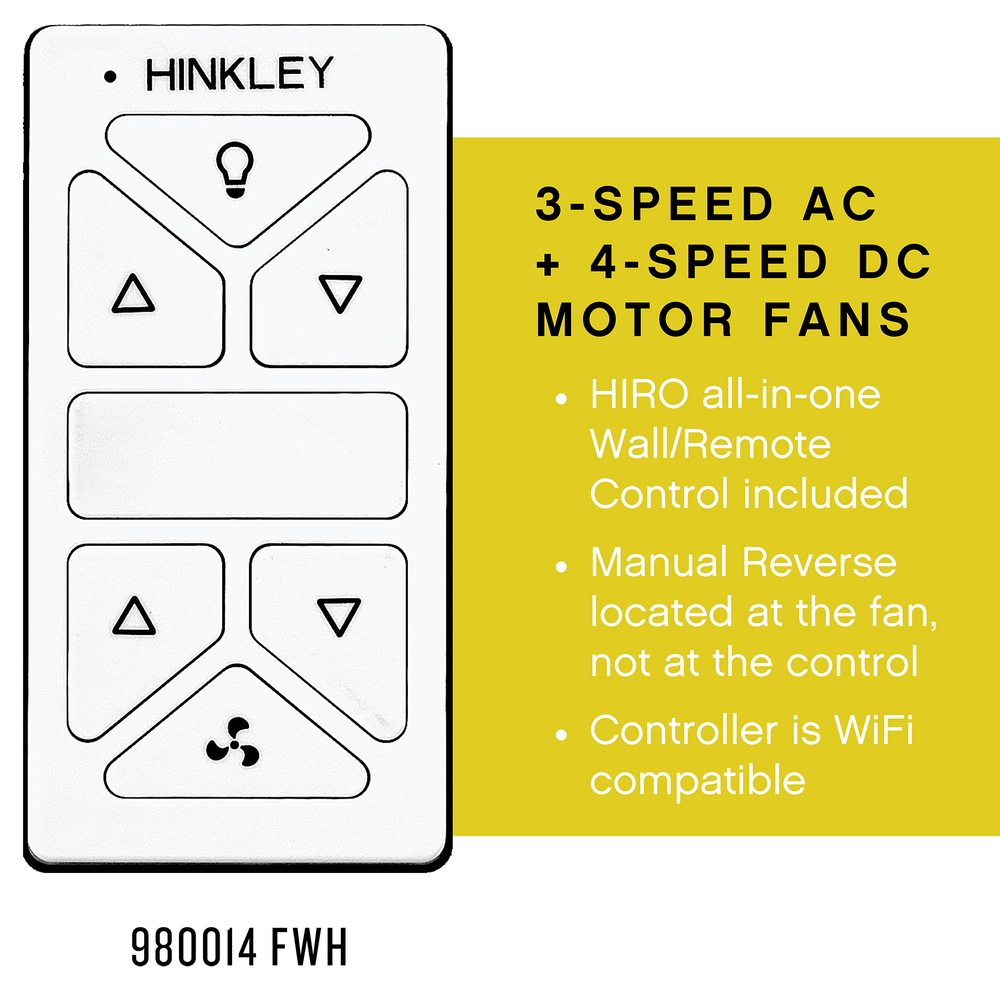

Control Type:
HIRO Control - 3 Speed Non-Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
105
Efficiency High:
95
Energy Cost Avg:
9
Energy Cost High:
14
Energy Use High:
50.3
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Dry Rated
Max Wattage:
16 W
Motor Fan Speed:
3
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes

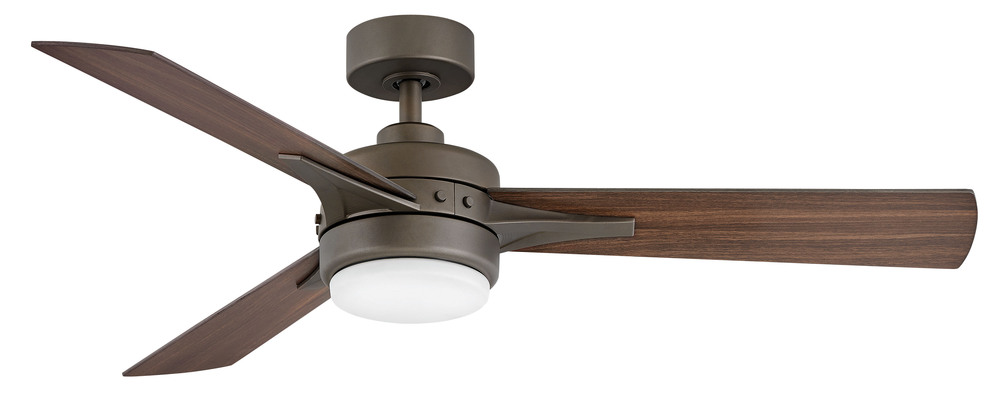

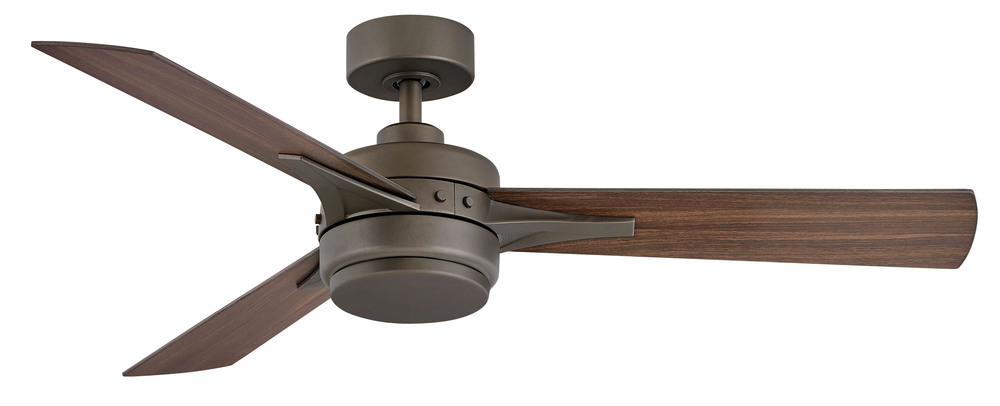

Reversible Blade Finish:
Walnut
Reversing Control:
No
RPMS Avg:
124
RPMS High:
187
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
No
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Title 24:
Yes
WIFI Control Included:
No
WIFI Control Optional:
Yes
