Part Number: DFPW / Vendor ID Number: 6 / Custom:

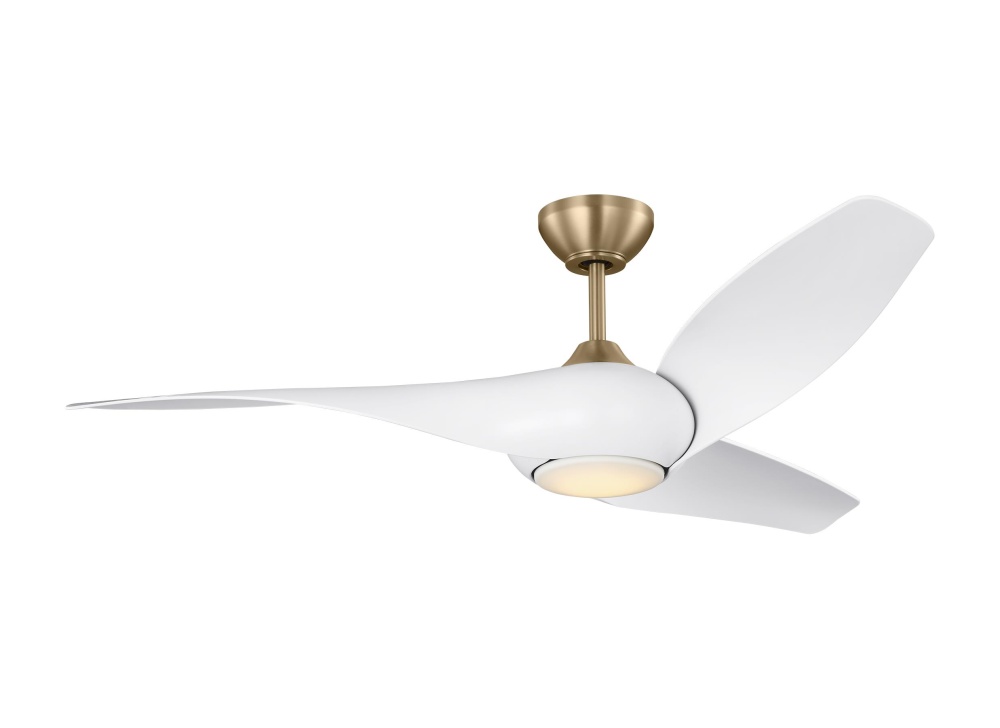

Topan Smart 52 LED Ceiling Fan in Burnished Brass with Matte White Blades and Light Kit

Topan Smart 52 LED Ceiling Fan in Burnished Brass with Matte White Blades and Light Kit

499
00
Pack Of: 1
  • Manufacturer has 203 items available.
  • More Items available 11/21/2025.
Qty
Product Specification
Dimensions
Width: 52.00"
Product Overview
A novel take on a popular style, the Topan Smart 52" LED fan by Sean Lavin showcases three gracefully twisted wrapped blades creating a pinwheel-liked dynamic that draws the eyes to the center. The classic metal construction and white lens LED gives a soft ambient illumination. Damp-rated for indoor or outdoor use, this app-controlled fan will create a striking statement in any space.
Product Availability
    Item appears to be in stock and ready to ship
Additional Information
Available in Midnight Black, Brushed Steel with Silver Blades, Matte White, and Burnished Brass with Matte White Blades,
Convenient operation with included Handheld Remote with 6-speed, Reverse and Dimmer functionality
Includes 3 Matte White ABS matching fan blades
Includes a light kit with frosted acrylic diffuser and integrated LED 3000K 90 CRI module delivering 850 lumens
Reversible motor technology allows you to switch the fan direction for optimal airflow in both summer and winter.
This fan can be controlled with a 6-speed handheld remote control or via your smart phone or tablet using the Bond App. A dimmable LED light kit is included and covered with frosted white diffuser.
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Brass /vendors/vendorImages brass.jpg
Style:
Modern
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Damp Rated
LED
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Wattage:
20w
Smart Home:
Yes
Category:
Ceiling Fan
Finish:
Burnished Brass
Style:
Modern
Option:
Energy Star
LED
Title 24
Family:
Topan Smart 52 LED
Voltage:
120 V
Shade:
Frosted Acrylic Diffuser
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
151
Blade Finish:
Matte White ABS
Blade Pitch:
21
Blade Span:
52
Bulb Type:
LED - Array
Canopy:
6 Dia x 2.5 H
Designer:
Sean Lavin
Electricity Used:
23
Introduction Date:
01/01/2025
Kelvin:
3000
Keyword(s):
Bedroom, Living Room, Great Room, Bathroom, Office, Library, Covered Patios/Porches, Garage
Light Kit Included:
Yes
Lumens / Light Output:
850
Material:
Steel
Motor Size:
155 x 8 mm
Motor Type:
DC
Order Minimum:
1
Ship Carton Height:
8.3
Ship Carton Length:
33.6
Ship Carton Width:
17.9
Ship Weight:
20.6
Sold By:
EA
Vendor Ship Method:
Parcel
Weight:
12.8
Wire Included:
78
Airflow CFM Low:
2134
Avg Airflow Efficiency:
3490
Blade Finish 2:
Matte White ABS
Blade to Ceiling:
13.3
Bulb Base:
19 - Integrated
Bulb CRI:
90
Bulb Dimming Range Max:
100
Bulb Dimming Range Min:
10
Bulb Included:
Yes
Bulb Light Source Name:
LED
Bulb Rated Life:
50000
Bulb Watts Consumed:
20
Bulb Watts Rated:
20
Canopy Shape:
Round
Canopy Style:
Threaded Downrod
CFM High:
4686
CFM Watt High:
143
CFM Watts Low:
543
Country of Origin:
China
Downrod Diameter:
0.5
Downrod Length:
6
Energy Star:
Yes
Fan Style:
Modern
Freight Class:
125
LED:
Yes
Location Rating:
Damp Rated
Max Blade To Ceiling Height:
13.3
Max Ceiling Slope:
20
Max Wattage:
20 W
Min Blade To Ceiling Height:
8.4
Minimum Ceiling Height:
8.11
Number of Blades:
3
Overall Height:
14
Qty Fabric Glass Shades:
1
Remote Control Included:
Yes
Remote Control Type:
Handheld Remote, 6-Speed, Reverse and Dimmer
Safety Rating:
cETL Rated
Shade Diameter:
6.38
Shade Finish:
Frosted
Shade Height:
1
Shade Shape:
Round
Standard Estimated Yearly Energy Cost:
6
Title 24:
Yes
Watts High:
32.7
Watts Low:
3.93
Wire Cord Length:
78
More In This Collection From Topan Smart 52 LED
