Part Number: K5QM / Vendor ID Number: 90 / Custom:
Starboard 52 inch Indoor/Outdoor Marine Grade Ceiling fan with LED CCT Select Light Kit

Starboard 52 inch Indoor/Outdoor Marine Grade Ceiling fan with LED CCT Select Light Kit

429
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 14.99"
Width: 52.00"
Length: 52.00"
Product Overview
The Starboard L is the perfect addition to your place, providing powerful, energy-efficient cooling that can be tailored to your needs. Its marine-grade construction ensures it can withstand the elements.. with a range of finishes to choose from, you can find the perfect match for your space. Whether you're entertaining guests or simply relaxing outdoors, the Starboard L will transform your space into a comfortable, breezy oasis. Its reversible motor allows you to switch the direction of the airflow, creating energy savings and year-round comfort. The dimmable LED light kit adds the perfect touch of ambiance, making the Starboard L a true must-have for your living area.
Product Availability
Blade Finish:
Additional options that would change other selections
Additional Information
CONTROL: Includes a CW2WH-6752 wall - slide control that has 3 fan speeds and 3 light levels
FINISH: Brushed Nickel
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod.
LIGHTING: Includes 24-watt dimmable LED light kit with opal frosted glass
LOCATION: Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches

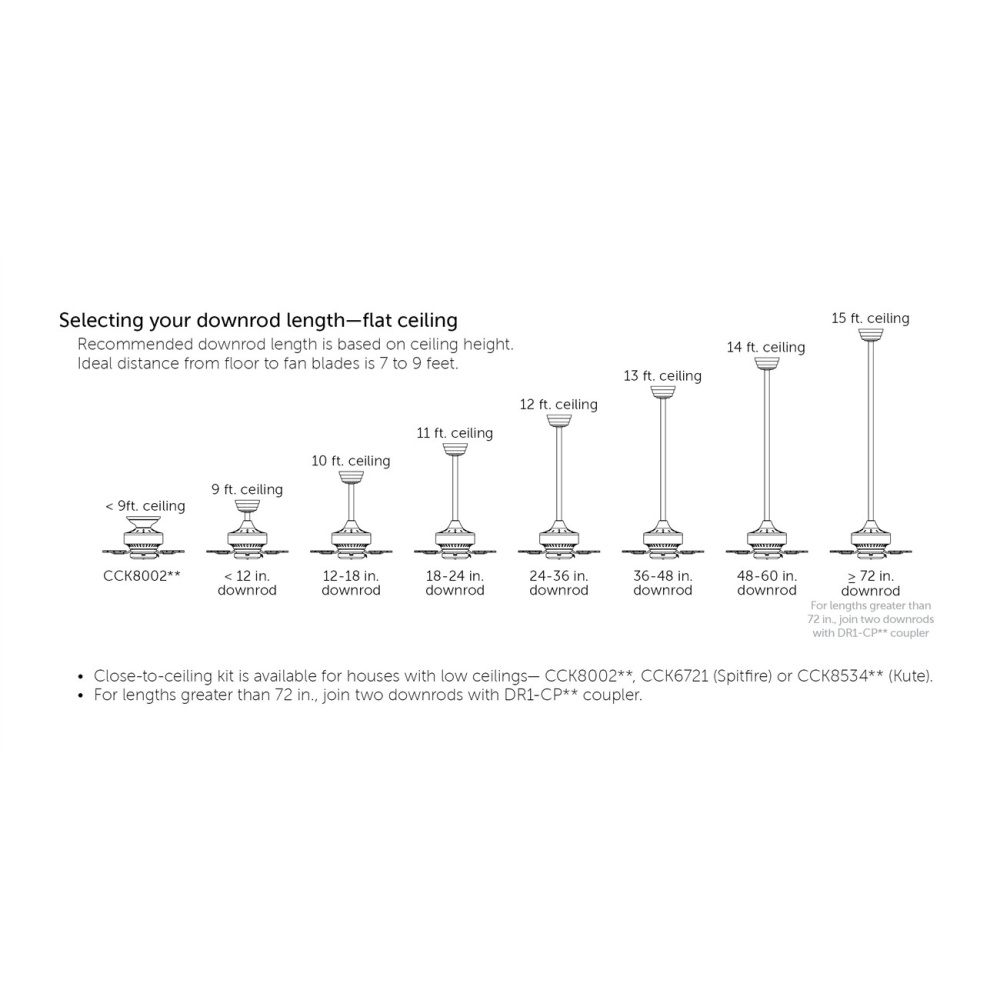

Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 3-speed, energy efficient AC motor provides airflow up to 6,718 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: Compatible with Fanimation Wi-Fi fanSync and most smart home devices (required controls sold separately)
WARRANTY: Limited lifetime
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Nickel /vendors/vendorImages nickel.jpg
Option:
Energy Efficient
Outdoor
Wet Rated
LED
Number of Blades:
3 Blades
Location Rating:
Wet Rated
Category:
Unipack
Finish:
Brushed Nickel
Option:
Energy Efficient
LED
Outdoor
Family:
Starboard
Voltage:
120 V
Shade:
Opal Frosted
Number of Bulbs:
1 Bulbs
Air Flow CFM:
6718
Air Flow Efficiency:
77
Blade Finish:
Gray
Blade Pitch:
14
Bulb Type:
LED Module
Canopy:
6.57 Dia x 2.62 H
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
2000
Motor Size:
188 x 25
Motor Type:
AC
Ship Carton Height:
11.42
Ship Carton Length:
26.61
Ship Carton Width:
10.67
Ship Weight:
22.79
Sold By:
EA
Warranty:
1 Year
Weight:
20.59
Airflow Efficiency Low:
165
Airflow Efficiency Medium:
113
Avg Airflow Efficiency:
86
Avg CFM Energy:
4473
Avg Energy Use:
52

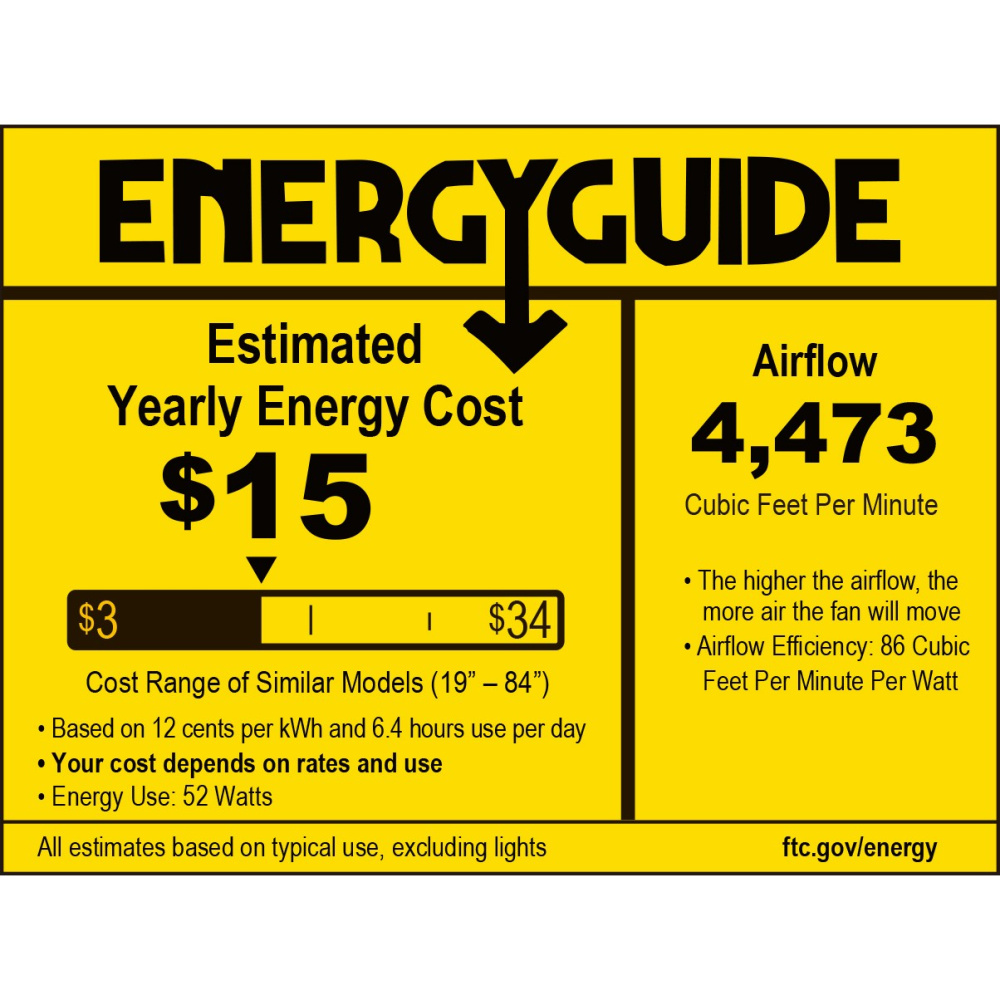

Avg Estimated Yearly Energy Cost:
15
Avg Estimated Yearly Energy Cost on HIGH:
25
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Bulb Base:
Connector Pin
Bulb CRI:
90
Cap Included:
No
Carton Cubic Feet:
1.88
Case Height:
11.42
Case Length:
26.61
Case Quantity:
1
Case Weight Pounds:
22.79
Case Width:
10.67
CEC Uploaded:
Yes
Ceiling To Blade Edge:
13.67
Ceiling To Bottom (With Light Kit):
14.99
CFM Low:
1926
CFM Medium:
3988
Country of Origin:
China
Current Draw High:
0.74
Current Draw Low:
0.27
Current Draw Medium:
0.47
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
9.03
Included Control:
CW2WH-6752
Included Control Type:
Wall
Indoor:
Yes
Leadwire:
54
LED:
Yes
Light Kit Energy Star 4:
No
Location Rating:
Wet Rated

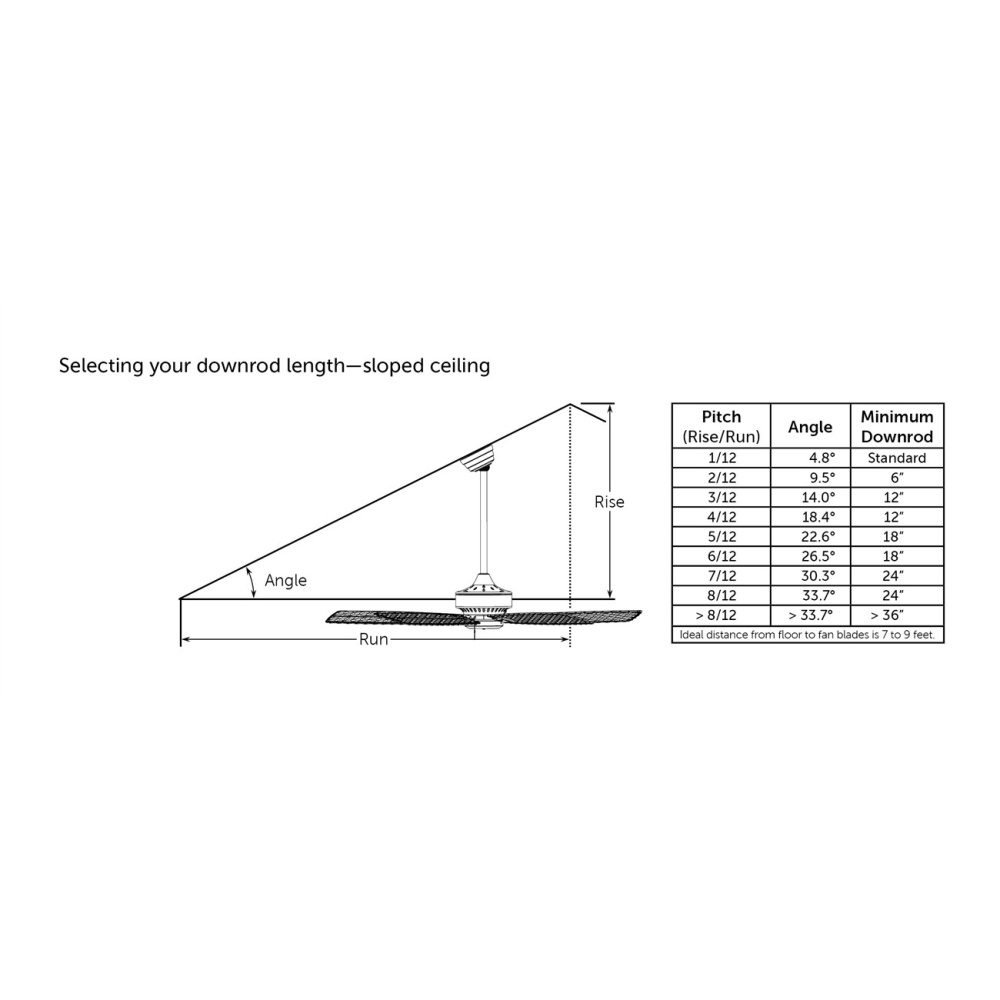

Max Ceiling Slope:
27
Max Wattage:
24 W
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High:
179
RPM Low:
59
RPM Medium:
105
Safety Rating:
UL Approved
Voltage Cycles:
60 Hz
Watts High:
88
Watts Low:
12
Watts Medium:
35
