Part Number: K1UR / Vendor ID Number: 90 / Custom:

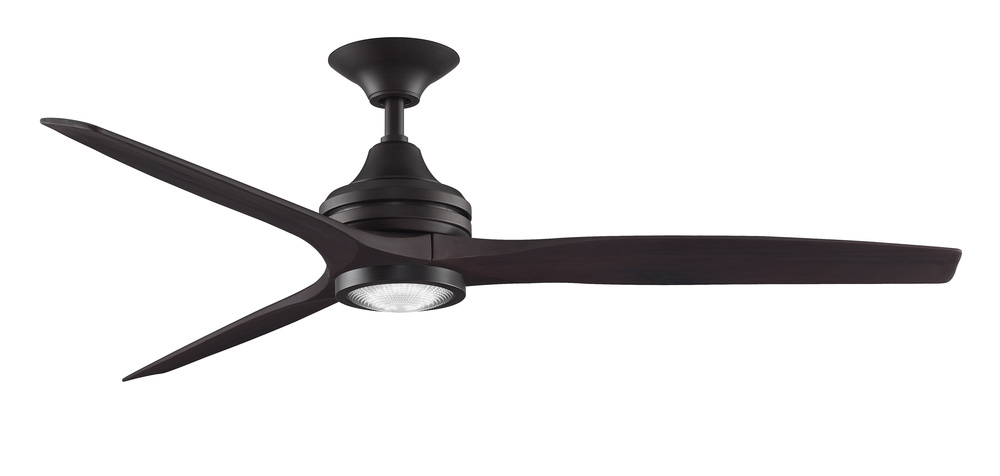

Spitfire Indoor/Outdoor Ceiling Fan AC Motor- Dark Bronze

Spitfire Indoor/Outdoor Ceiling Fan AC Motor- Dark Bronze

369
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 12.00"
Width: 48.00"
Length: 48.00"
Product Overview
The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. This ceiling fan is Damp rated for indoor or outdoor use and is compatible with most smart home devices (required control sold separately)
The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Product Availability
Motor Finish Method Type:
Additional options that would change other selections
Motor Size:
Additional options that would change other selections
Additional Information
CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off
FINISH: Dark Bronze ceiling fan motor from the Spitfire collection - Set of three Damp Rated blades available in multiple finishes (sold separately)
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod.
LIGHTING: 18-Watt dimmable LED light kit with opal frosted glass available for added versatility (light kit sold separately)
LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 3-speed, energy efficient AC motor provides airflow up to 5,164 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan?s rotation and create energy savings
TECHNOLOGY: Compatible with Fanimation Wi-Fi fanSync and most smart home devices (required controls sold separately)
WARRANTY: Limited lifetime
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Traditional
Option:
Energy Efficient
Outdoor
Damp Rated
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Category:
Motor
Finish:
Dark Bronze
Option:
Energy Efficient
Outdoor
Family:
Spitfire
Voltage:
120 V
Air Flow CFM:
5164
Air Flow Efficiency:
72
Blade Pitch:
21
Canopy:
7.09 Dia x 2.2 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
188 x 25
Motor Type:
AC
Ship Carton Height:
10.94
Ship Carton Length:
14.37
Ship Carton Width:
10.43
Ship Weight:
17.85
Sold By:
EA
Warranty:
Limited Lifetime
Weight:
17.42
Airflow Efficiency Low:
132
Airflow Efficiency Medium:
101
Avg Airflow Efficiency:
80
Avg CFM Energy:
3527
Avg Energy Use:
44
Avg Estimated Yearly Energy Cost:
12
Avg Estimated Yearly Energy Cost on HIGH:
20
Cap Included:
No
Carton Cubic Feet:
0.95
Case Height:
10.94
Case Length:
14.37
Case Quantity:
1
Case Weight Pounds:
18.74
Case Width:
10.43
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12
Ceiling To Bottom (No Light Kit):
12
Ceiling To Bottom (With Light Kit):
13.71
CFM Low:
1526
CFM Medium:
3280
Country of Origin:
China
Current Draw High:
0.6
Current Draw Low:
0.24
Current Draw Medium:
0.4
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
8.07
Included Control:
TR500
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
80
Location Rating:
Damp Rated
Max Ceiling Slope:
19
Max Length:
60
Max Width:
60
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High:
198
RPM Low:
66
RPM Medium:
124
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
72
Watts Low:
12
Watts Medium:
32
