Lighting and Hardware Catalog – Ellen Lighting
alt
Part Number: K2TQ / Vendor ID Number: 90 / Custom:

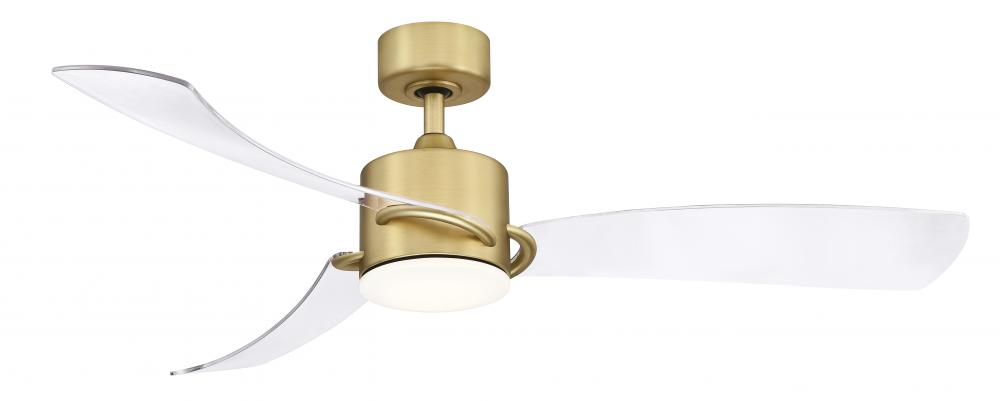

SculptAire 52 inch Indoor/Outdoor Ceiling Fan with LED Light Kit

SculptAire 52 inch Indoor/Outdoor Ceiling Fan with LED Light Kit

449
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 13.88"
Width: 52.00"
Length: 52.00"
Product Overview
Whether you choose a Black, Chrome, Brushed Satin Brass, or Matte White finish, the clear blades on SculptAire will keep you looking and feeling cool. This 52 inch fan has a 3 speed AC motor and comes with an 18 watt LED light kit and cover. *Brushed Satin Brass and Chrome finishes are Dry Rated for indoor use; while the Black and Matte White finishes are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Whether you choose Black, Chrome or Brushed Satin Brass finish, the clear blades on SculptAire will keep you looking and feeling cool. This 52 inch fan has a 3 speed AC motor and comes with an 18 watt LED light kit and cover. *Brushed Satin Brass and Chrome finishes are Dry Rated for indoor use; while the Black finish is Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Product Availability
Location Rating:
Additional options that would change other selections
Motor Finish Method Type:
Additional options that would change other selections
Additional Information
CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off
FINISH: Brushed Satin Brass ceiling fan from the SculptAire Collection features 3 Clear blades
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod.
LIGHTING: Includes integrated 18-watt dimmable LED light kit with opal frosted glass shade
LOCATION: Dry Rated for indoor use only, making it ideal for spaces like bedrooms, living rooms, kitchen, or office
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 3-speed, energy efficient AC Motor provides airflow up to 4,663 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: Compatible with Fanimation WiFi fanSync and most smart home devices (required controls sold separately)
WARRANTY: Limited lifetime
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Brass /vendors/vendorImages brass.jpg
Style:
Traditional
Option:
Energy Efficient
Outdoor
Dry Rated
LED
Glass Finish or Style:
Frosted
Opal
Number of Blades:
3 Blades
Location Rating:
Dry Rated
Wattage:
18w
Category:
Unipack
Finish:
Brushed Satin Brass
Option:
Energy Efficient
LED
Outdoor
Family:
SculptAire
Voltage:
120 V
Shade:
Opal Frosted
Number of Bulbs:
1 Bulbs
Air Flow CFM:
4663
Air Flow Efficiency:
80
Blade Finish:
Clear
Blade Pitch:
13
Bulb Type:
LED Module
Canopy:
5.75 Dia x 2.57 H
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1500
Motor Size:
153 x 20
Motor Type:
AC
Ship Carton Height:
10
Ship Carton Length:
25.98
Ship Carton Width:
11.93
Ship Weight:
21.61
Sold By:
EA
Warranty:
Limited Lifetime
Weight:
18.11
Airflow Efficiency Low:
147
Airflow Efficiency Medium:
105
Avg Airflow Efficiency:
101
Avg CFM Energy:
3868
Avg Energy Use:
38
Avg Estimated Yearly Energy Cost:
11
Avg Estimated Yearly Energy Cost on HIGH:
16
Blade Finish Method:
Injected
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Bulb Base:
Connector Pin
Bulb CRI:
90
Cap Included:
Yes
Carton Cubic Feet:
1.79
Case Height:
10
Case Length:
25.98
Case Quantity:
1
Case Weight Pounds:
21.61
Case Width:
11.93
CEC Uploaded:
Yes
Ceiling To Blade Edge:
11.83
Ceiling To Bottom (No Light Kit):
13.88
Ceiling To Bottom (With Light Kit):
13.88
CFM Low:
1980
CFM Medium:
3276
Country of Origin:
China
Current Draw High:
0.48
Current Draw Low:
0.23
Current Draw Medium:
0.35
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
7.48
Included Control:
TR500
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
54
LED:
Yes
Light Kit Energy Star 4:
No
Location Rating:
Dry Rated
Max Ceiling Slope:
27
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High:
130
RPM Low:
56
RPM Medium:
93
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
58
Watts Low:
14
Watts Medium:
31
