Part Number: K4R4 / Vendor ID Number: 90 / Custom:

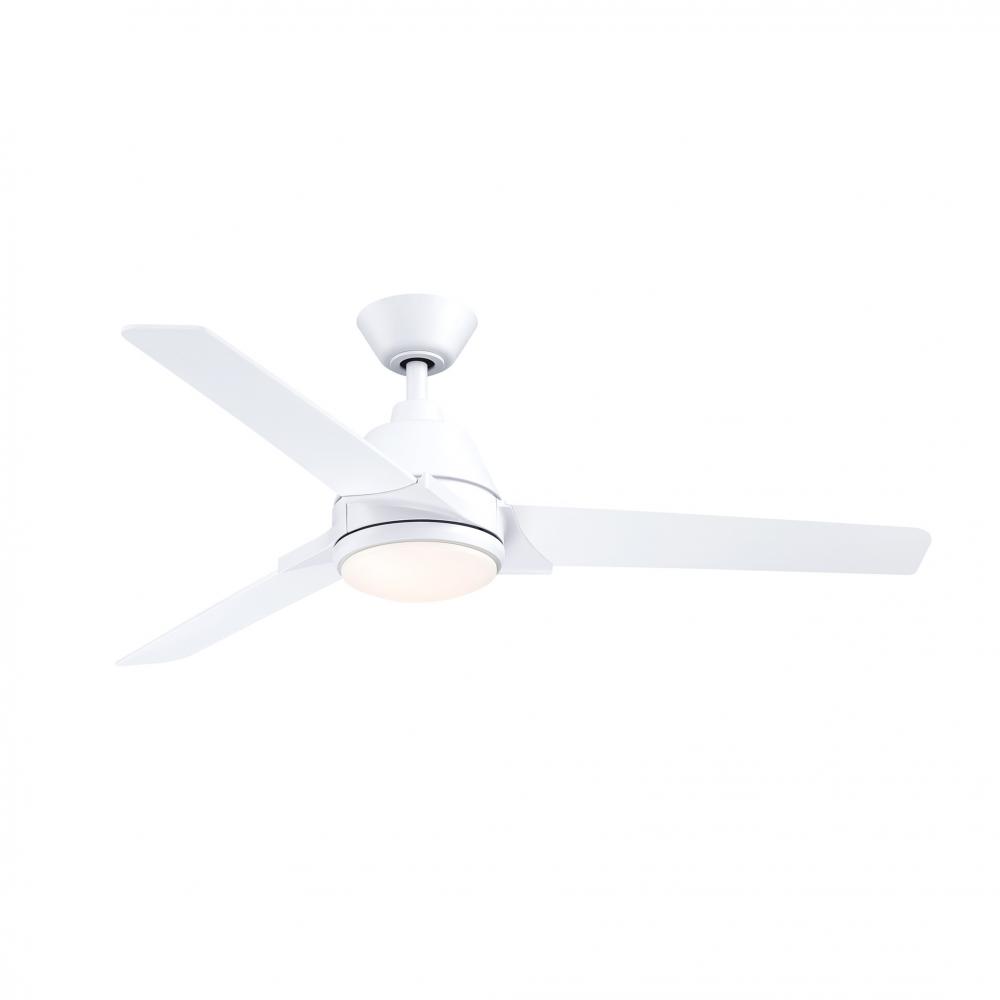

Pyramid 52 inch Indoor/Outdoor Ceiling Fan with LED Light Kit - Matte White

Pyramid 52 inch Indoor/Outdoor Ceiling Fan with LED Light Kit - Matte White

389
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 14.52"
Width: 52.00"
Length: 52.00"
Product Overview
A stunning addition to your home, the 52 inch Pyramid ceiling fan features an elegant aged bronze finish that blends well in both modern and traditional decors, while a simple design and easy operation make this fan easy to install. This charming fan with 3 blades is perfect for any indoor or covered outdoor space. 3 speed settings make it easy to maintain the ideal comfort level. Includes TR400S remote, so you can control the fan from anywhere in the room.
Product Availability
Blade Finish:
Additional options that would change other selections
Motor Finish Method Type:
Additional options that would change other selections
Additional Information
CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off
FINISH: Matte White ceiling fan from the Pyramid Collection features 3 Matte White blades
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod.
LIGHTING: Includes 18-watt dimmable LED light kit with an opal frosted glass shade
LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 3-speed, energy efficient AC motor provides airflow up to 4,827 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: Compatible with Fanimation Wi-Fi fanSync and most smart home devices (required controls sold separately)
WARRANTY: Limited lifetime
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Efficient
Outdoor
Damp Rated
LED
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Wattage:
18w
Category:
Unipack
Finish:
Matte White
Option:
Energy Efficient
LED
Outdoor
Family:
Pyramid
Voltage:
120 V
Shade:
Opal Frosted
Number of Bulbs:
1 Bulbs
Air Flow CFM:
4827
Air Flow Efficiency:
81
Blade Finish:
Matte White
Blade Pitch:
13
Bulb Type:
LED Module
Canopy:
6.1 Dia x 2.24 H
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1500
Motor Size:
153 x 20
Motor Type:
AC
Ship Carton Height:
8.98
Ship Carton Length:
24.41
Ship Carton Width:
9.65
Ship Weight:
19.29
Sold By:
EA
Warranty:
Limited Lifetime
Weight:
17.4
Airflow Efficiency Low:
148
Airflow Efficiency Medium:
104
Avg Airflow Efficiency:
90
Avg CFM Energy:
3466
Avg Energy Use:
38
Avg Estimated Yearly Energy Cost:
11
Avg Estimated Yearly Energy Cost on HIGH:
17
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Bulb Base:
Connector Pin
Bulb CRI:
90
Cap Included:
Yes
Carton Cubic Feet:
1.22
Case Height:
8.98
Case Length:
24.41
Case Quantity:
1
Case Weight Pounds:
19.29
Case Width:
9.65
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12.18
Ceiling To Bottom (No Light Kit):
13.15
Ceiling To Bottom (With Light Kit):
14.52
CFM Low:
1924
CFM Medium:
3293
Country of Origin:
China
Current Draw High:
0.5
Current Draw Low:
0.24
Current Draw Medium:
0.37
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
8.27
Included Control:
TR500
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
54
LED:
Yes
Light Kit Energy Star 4:
No
Location Rating:
Damp Rated
Max Ceiling Slope:
19
Max Wattage:
18 W
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High:
186
RPM Low:
79
RPM Medium:
131
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
60
Watts Low:
13
Watts Medium:
32
