Part Number: G7XJ / Vendor ID Number: 90 / Custom:

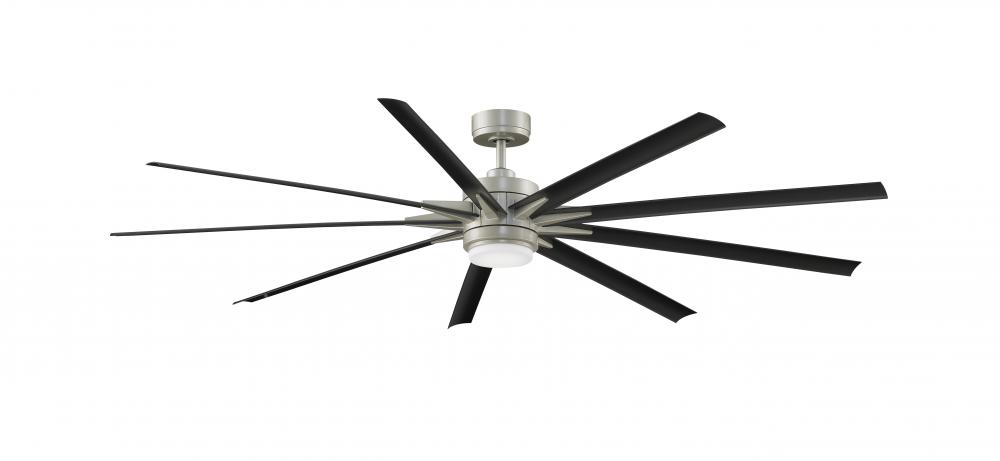

Odyn 84 inch Indoor/Outdoor Ceiling Fan with LED CCT Select Light Kit

Odyn 84 inch Indoor/Outdoor Ceiling Fan with LED CCT Select Light Kit

699
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 22.63"
Width: 84.00"
Length: 84.00"
Product Overview
The Odyn by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
Blade Finish:
Additional options that would change other selections
Motor Finish Method Type:
Additional options that would change other selections
Additional Information
CONTROL: Use your smart home device with our fanSync app, or use the included TR305 hand-held remote with two 3V CR2032 batteries
FINISH: Brushed Nickel ceiling fan from the Odyn Collection features 9 Black blades
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 12-in length downrod.
LIGHTING: Includes integrated 18-watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology, providing a selection of light colors ranging from warm white, bright light or daylight with opal frosted glass shade
LOCATION: Wet Rated for indoor and outdoor use in wet locations, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 16-speed, quiet, and energy efficient DC Motor provides airflow up to 11,363 CFM
Push buttons control 16 variable fan speeds, light levels, CCT Select, timer, powering on/off, and fresh air, reverse, home away, safe exit modes
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: Correlated Color Temperature (CCT) Select Technology, provides a selection of light colors ranging from warm white, bright light or daylight and WiFi fanSync, which provides fan control with a smart device or voice assistant
WARRANTY: Limited lifetime
Info & Guides
Technical Details
Details
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Outdoor Fans
Finish:
Nickel /vendors/vendorImages nickel.jpg
Style:
Traditional
Option:
Energy Efficient
Outdoor
Wet Rated
LED
Glass Finish or Style:
Frosted
Opal
Number of Blades:
8 Plus Blades
Location Rating:
Wet Rated
Wattage:
18w
Category:
Unipack
Finish:
Brushed Nickel
Option:
Energy Efficient
LED
Outdoor
Family:
Odyn 84
Voltage:
120 V
Shade:
Opal Frosted
Number of Bulbs:
1 Bulbs
Air Flow CFM:
11363
Air Flow Efficiency:
328
Blade Finish:
Black
Blade Pitch:
12
Bulb Type:
LED Module
Canopy:
6.46 Dia x 2.58 H
Harmonized Codes:
8414.51.3000
Kelvin:
3000, 4000, 5000
Light Kit Included:
Yes
Lumens / Light Output:
1600
Motor Size:
DC 135L
Motor Type:
DC
Ship Carton Height:
12.91
Ship Carton Length:
39.96
Ship Carton Width:
10.43
Ship Weight:
37.49
Sold By:
EA
Warranty:
Limited Lifetime
Weight:
33.74
Airflow Efficiency Low:
1179
Airflow Efficiency Medium:
648
Avg Airflow Efficiency:
339
Avg CFM Energy:
7949
Avg Energy Use:
23
Avg Estimated Yearly Energy Cost:
7
Avg Estimated Yearly Energy Cost on HIGH:
10
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
84
Bulb Base:
Connector Pin
Bulb CRI:
90
Cap Included:
Yes
Carton Cubic Feet:
3.11
Case Height:
12.91
Case Length:
39.96
Case Quantity:
1
Case Weight Pounds:
37.49
Case Width:
10.43
CEC Uploaded:
Yes
Ceiling To Blade Edge:
18.83
Ceiling To Bottom (No Light Kit):
22.32
Ceiling To Bottom (With Light Kit):
22.63
CFM Low:
4694
CFM Medium:
8272
Country of Origin:
China
Current Draw High:
0.49
Current Draw Low:
0.07
Current Draw Medium:
0.2
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
12
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
Yes
Housing Diameter:
8.27
Included Control:
TR305
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
80
LED:
Yes
Light Kit Energy Star 4:
Yes
Location Rating:
Wet Rated
Max Ceiling Slope:
27
Max Wattage:
18 W
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
9
Number Of Speeds:
16
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
70
RPM Low:
30
RPM Medium:
51
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
35
Watts Low:
4
Watts Medium:
13
