Part Number: K3Q7 / Vendor ID Number: 90 / Custom:

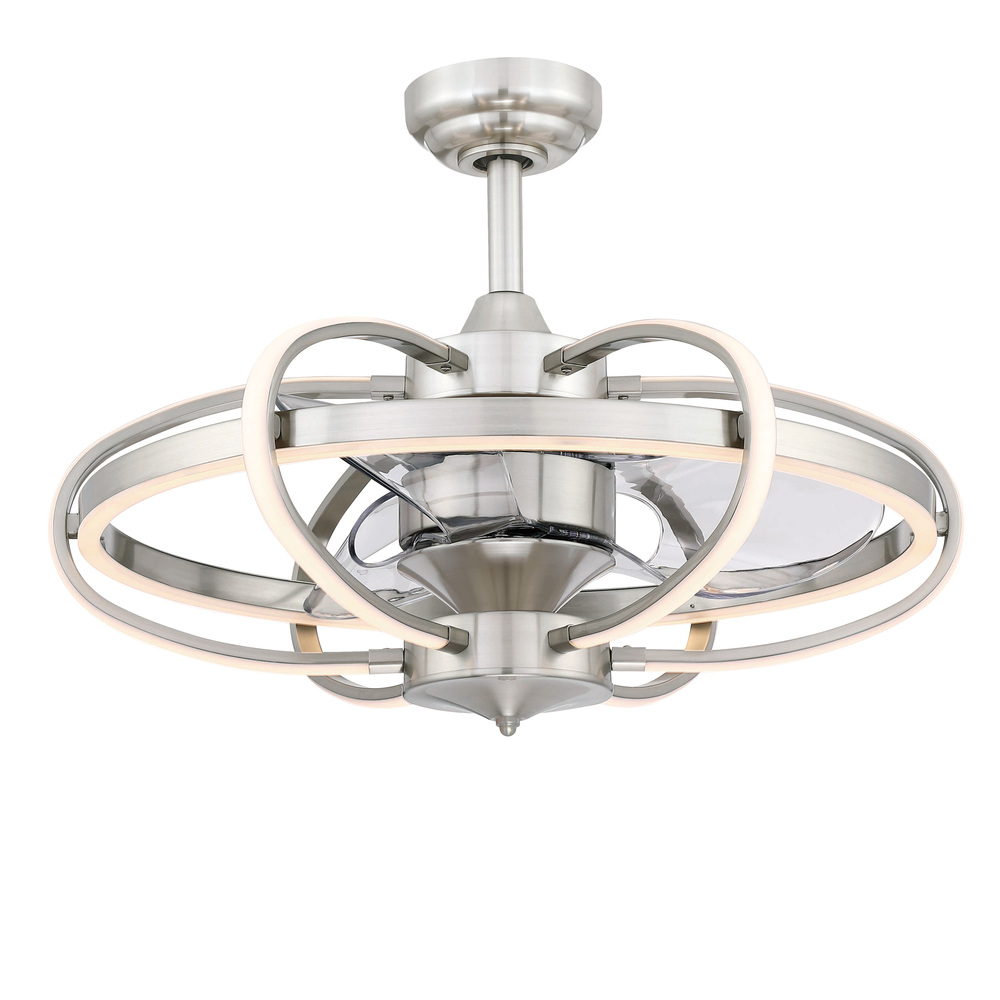

Obvi 22 inch Indoor Ceiling Fan with LED Light Kit - Brushed Nickel with Clear blades

Obvi 22 inch Indoor Ceiling Fan with LED Light Kit - Brushed Nickel with Clear blades

649
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 19.96"
Width: 26.43"
Length: 26.43"
Product Overview
The Obvi by Fanimation is the obvious choice for uniqueness in trend and style. This ceiling fan includes a set of three clear blades and six LED side lights as well as a LED center band light with opal frosted shades. The Obvi encompasses comfort and design that is perfect for any room in the home. Dry Rated for indoor use only and can be controlled using the Fanimation Bluetooth fanSync application. The fan is reversible airflow for multi-season use
The Obvi by Fanimation is the obvious choice for uniqueness in trend and style. This ceiling fan includes a set of three clear blades and six LED side lights as well as a LED center band light with opal frosted shades. The Obvi encompasses comfort and design that is perfect for any room in the home. ?Dry Rated for indoor use only ?Can be controlled using the Fanimation Bluetooth fanSync app ?Reversible airflow for multi-season use
Product Availability
Motor Finish Method Type:
Additional options that would change other selections
Additional Information
CONTROL: Includes a TR205D hand-held remote with two 3V CR2032 batteries - Push buttons control 16 fan speeds, infinite light levels, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes
FINISH: Brushed nickel ceiling fan from the Obvi Collection features 3 Clear blades
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 6-in length downrod - Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor.
LIGHTING: Includes six integrated 4-watt dimmable LED side lights and 24-watt dimmable LED center band
LOCATION: Dry Rated for indoor use only, making it ideal for spaces like bedrooms, living rooms, kitchens, or offices
POWER: The 16-speed, quiet and energy efficient DC Motor provides airflow up to 1,426 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
WARRANTY: Limited lifetime
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Nickel /vendors/vendorImages nickel.jpg
Style:
Traditional
Option:
Energy Efficient
Dry Rated
LED
Number of Blades:
3 Blades
Location Rating:
Dry Rated
Wattage:
20w
Category:
Unipack
Finish:
Brushed Nickel
Option:
Energy Efficient
LED
Family:
Obvi
Voltage:
120 V
Number of Bulbs:
6 Bulbs
Air Flow CFM:
1426
Air Flow Efficiency:
55
Blade Finish:
Clear
Blade Pitch:
Varied
Bulb Type:
LED
Canopy:
5.83 Dia x 2.17 H
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
2580
Motor Size:
153 x 12
Motor Type:
DC
Ship Carton Height:
15.71
Ship Carton Length:
29.02
Ship Carton Width:
27.44
Ship Weight:
29.34
Sold By:
EA
Warranty:
Limited Lifetime
Weight:
21.16
Airflow Efficiency Low:
123
Airflow Efficiency Medium:
64
Avg Airflow Efficiency:
62
Avg CFM Energy:
1177
Avg Energy Use:
19
Avg Estimated Yearly Energy Cost:
5
Avg Estimated Yearly Energy Cost on HIGH:
7
Blade Finish Method:
Injected
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
22
Bulb Base:
Connector Pin
Bulb Color Temp 2:
3000
Bulb CRI:
90
Bulb CRI 2:
90
Bulb Lumens 2:
1370
Bulb Quantity 2:
4
Bulb Type 2:
LED
Cap Included:
No
Carton Cubic Feet:
7.24
Case Height:
15.71
Case Length:
29.02
Case Quantity:
1
Case Weight Pounds:
29.34
Case Width:
27.44
CEC Uploaded:
Yes
Ceiling To Blade Edge:
14.91
Ceiling To Bottom (With Light Kit):
19.8
CFM Low:
817
CFM Medium:
1310
Country of Origin:
China
Current Draw High:
0.39
Current Draw Low:
0.11
Current Draw Medium:
0.32
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
6
Energy Efficient:
Yes
Exempt from DOE Procedure:
Yes
Fan Energy Star 4:
No
Housing Diameter:
26.43
Included Control:
TR205D
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
54
LED:
Yes
Light Kit Energy Star 4:
No
Location Rating:
Dry Rated
Max Ceiling Slope:
19
Max Wattage:
4 W
Max Wattage 2:
6 W
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
386
RPM Low:
219
RPM Medium:
356
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
26
Watts Low:
7
Watts Medium:
20
