Part Number: K6N8 / Vendor ID Number: 90 / Custom:

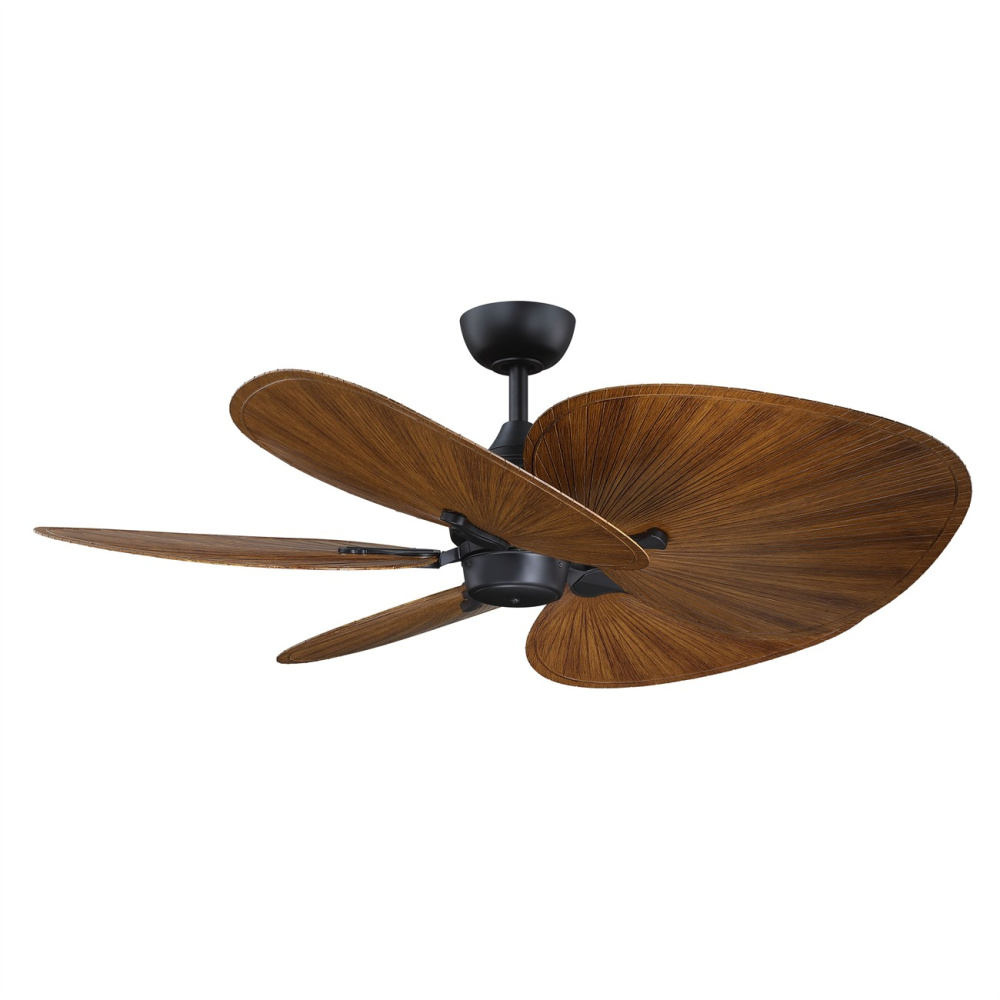

Islander Indoor/Outdoor Ceiling Fan DC Motor - Black

Islander Indoor/Outdoor Ceiling Fan DC Motor - Black

489
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 16.26"
Width: 52.00"
Length: 52.00"
Product Overview
The 5-blade Islander by Fanimation in the Black finish allows you to create an oasis of calm within your home. The choice of multiple tropically inspired blade styles (sold separately) will help transform living rooms, bedrooms, and sunrooms into exotic yet casual settings. The blade sweep ranges from 68 to 80 inches, depending on the style selected. Best of all, the Energy Star-rated Islander consumes 70 percent less energy than a conventional ceiling fan thanks to its DC-powered motor. Conserving energy never felt this good! The streamlined housing in the Black finish seamlessly fits in with many décors. with the flexibility of 6 forward and 6 reverse speeds, you can choose to relax under a gentle breeze, experience some major cooling effects during a heat wave and everything in between. Sloped ceilings are no problem for the Islander; it can be installed in ceilings with up to a 30 degree slope. A remote control is included (an optional wall control can be ordered). All Fanimation motors are protected by a limited lifetime warranty.
Product Availability
Motor Finish Method Type:
Additional options that would change other selections
Additional Information
CONTROL: Includes a TR360 hand-held remote
FINISH: Black

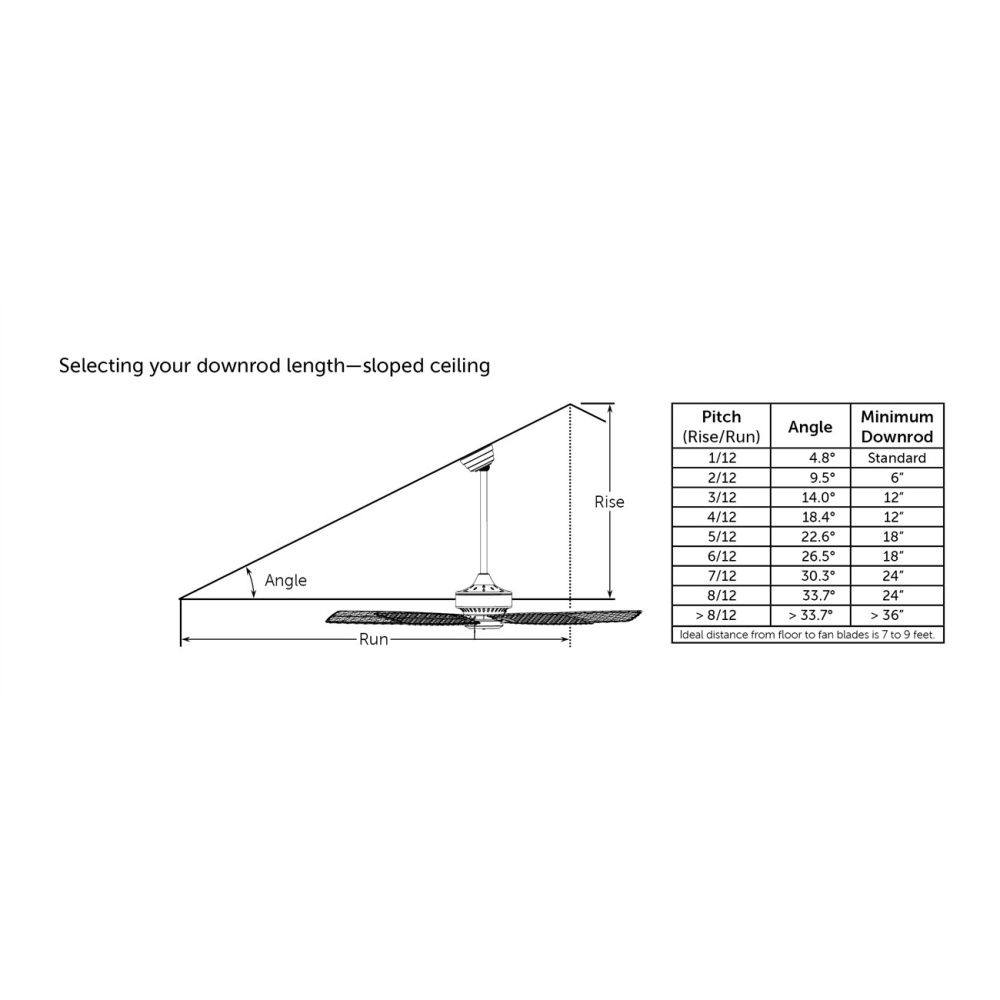

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 6-in length downrod.
LIGHTING: Light kits not available
LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity

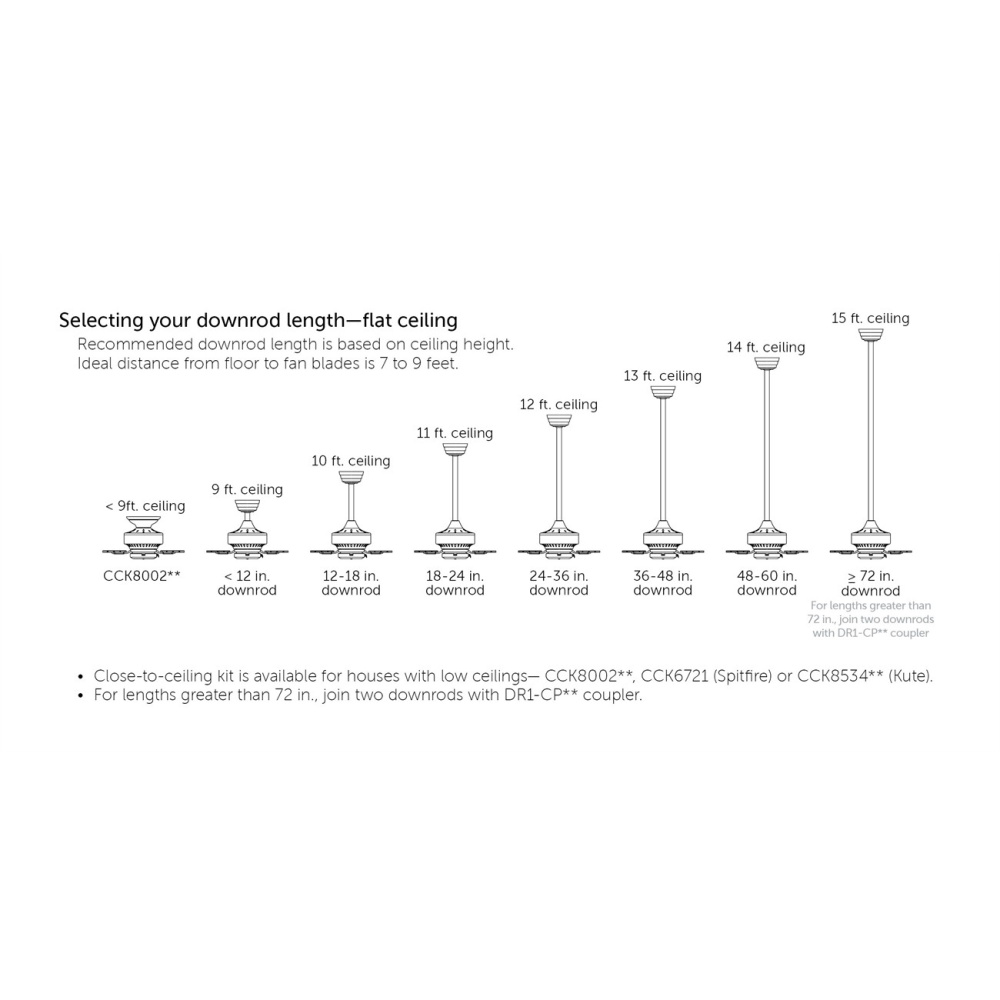

Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 6-speed, quiet and energy efficient DC motor can provide airflow up to 5,141 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan's rotation and create energy savings
TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
WARRANTY: 1-Year
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Outdoor Fans
Finish:
Black /vendors/vendorImages black.jpg
Option:
Energy Efficient
Energy Star /vendors/vendorImages energy star.jpg
Outdoor
Damp Rated
Number of Blades:
5 Blades
Location Rating:
Damp Rated
Category:
Motor
Finish:
Black
Option:
Energy Efficient
Energy Star
Outdoor
Family:
Islander DC
Voltage:
120 V
Air Flow CFM:
5141
Air Flow Efficiency:
154
Blade Pitch:
20
Canopy:
6.5 Dia x 2.58 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
DC125NS
Motor Type:
DC
Ship Carton Height:
8.54
Ship Carton Length:
21.97
Ship Carton Width:
10.08
Ship Weight:
15.18
Sold By:
EA
Warranty:
1 Year
Weight:
15.18
Airflow Efficiency Low:
407
Airflow Efficiency Medium:
240
Airflow Efficiency Medium High:
181
Airflow Efficiency Medium Low:
323
Airflow Efficiency Mini:
635
Avg Airflow Efficiency:
173

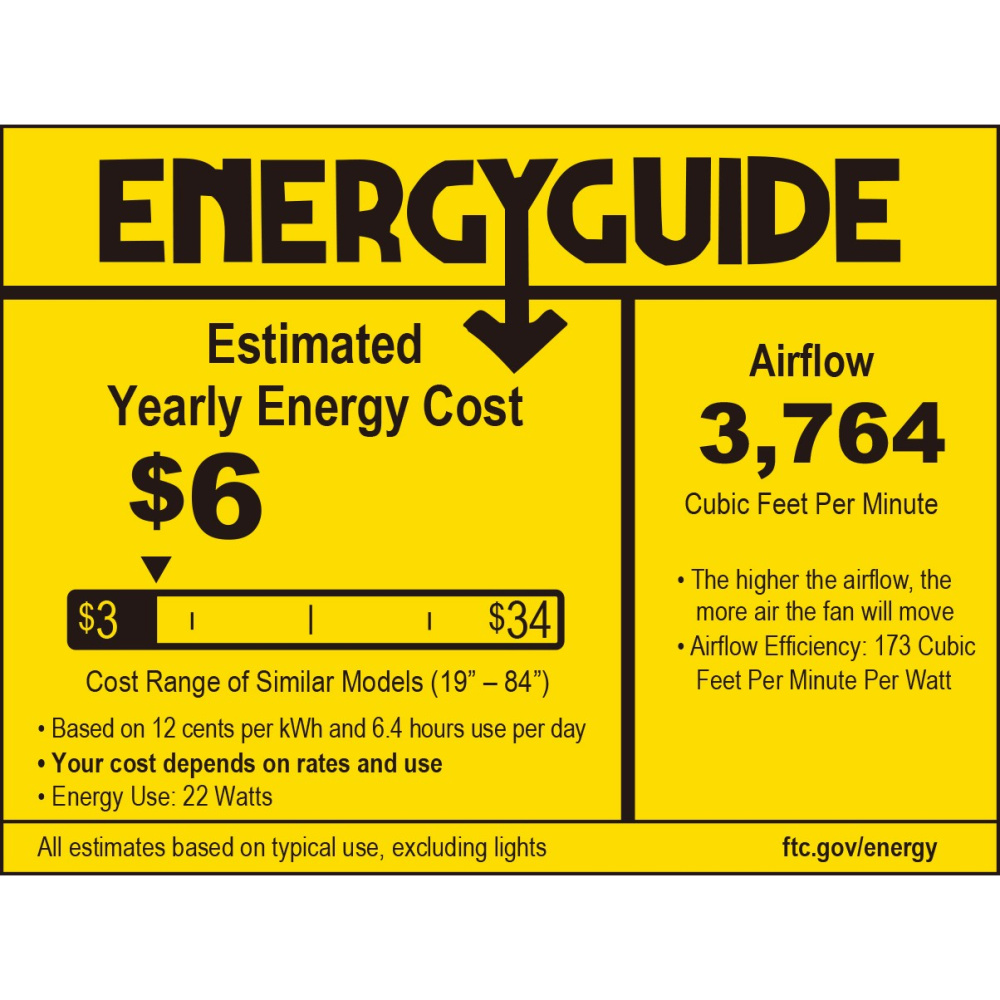

Avg CFM Energy:
3764
Avg Energy Use:
22
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
9
Cap Included:
No
Carton Cubic Feet:
1.1
Case Height:
8.54
Case Length:
21.97
Case Quantity:
1
Case Weight Pounds:
16.74
Case Width:
10.08
CEC Uploaded:
Yes
Ceiling To Blade Edge:
BPP1: 17.61; BPP4: 15.84
Ceiling To Bottom (No Light Kit):
16.26
CFM Low:
2733
CFM Medium:
3952
CFM Medium High:
4690
CFM Medium Low:
3368
CFM Mini:
2205
Country of Origin:
China
Current Draw High:
0.49
Current Draw Low:
0.1
Current Draw Medium:
0.23
Current Draw Medium High:
0.37
Current Draw Medium Low:
0.17
Current Draw Mini:
0.06
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
6
Energy Efficient:
Yes
Energy Star:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
8.17
Included Control:
TR360
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
14 Motor & 15 Light
Location Rating:
Damp Rated
Max Ceiling Slope:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
5
Number Of Speeds:
6
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
119
RPM Low:
64
RPM Medium:
93
RPM Medium High:
105
RPM Medium Low:
78
RPM Mini:
50
Safety Rating:
UL Approved
Voltage Cycles:
60 Hz
Watts High:
33
Watts Low:
7
Watts Medium:
16
Watts Medium High:
26
Watts Medium Low:
10
Watts Mini:
3
