Part Number: K1RY / Vendor ID Number: 90 / Custom:

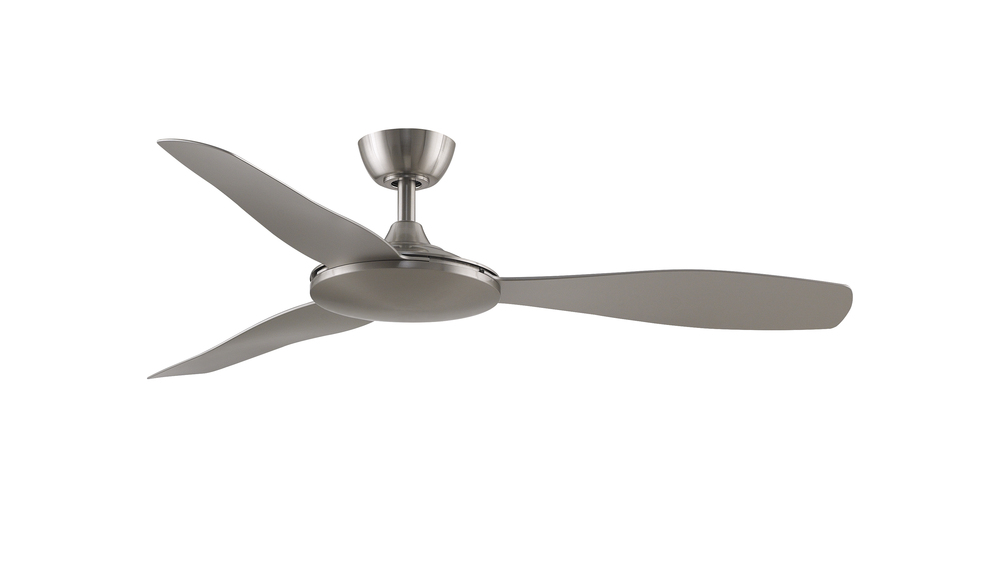

GlideAire 52 inch Indoor/Outdoor Ceiling Fan - Brushed Nickel with Brushed Nickel blades

GlideAire 52 inch Indoor/Outdoor Ceiling Fan - Brushed Nickel with Brushed Nickel blades

399
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 9.98"
Width: 52.00"
Length: 52.00"
Product Overview
Gleam by Fanimation will take center stage in your home. This sleek fan is available in two finish combinations and comes with a 20 watt LED light kit with opal frosted glass. Gleam has a 3 speed AC motor. This ceiling fan is Damp Rated for indoor or outdoor use and compatible with most smart home devices (required control sold separately) Reversible airflow for multi-season use
GlideAire by fanimation has a contemporary design and uses the latest technology. fanSync Bluetooth is included with purchase and GlideAire is WiFi compatible with the purchase of an optional control. This damp rated fan is available in three finish combinations and comes with a 31 speed DC motor. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
Blade Finish:
Additional options that would change other selections
Motor Finish Method Type:
Additional options that would change other selections
Additional Information
CONTROL: Use your smart home device with our fanSync app, or use the included TR205DS hand-held remote with two 3V CR2032 batteries - Push buttons control 16 fan speeds, fan timer, fan off, and fresh air, reverse, home away, safe exit modes
FINISH: Brushed Nickel ceiling fan from the GlideAire Collection features 3 Brushed Nickel blades
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod.
LIGHTING: Light kit not included
LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 16-speed, quiet and energy efficient DC Motor provides airflow up to 5,538 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: WiFi fanSync, which provides fan control with a smart device or voice assistant
WARRANTY: Limited lifetime
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Nickel /vendors/vendorImages nickel.jpg
Style:
Traditional
Option:
Energy Efficient
Outdoor
Damp Rated
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Category:
Unipack
Finish:
Brushed Nickel
Option:
Energy Efficient
Outdoor
Family:
GlideAire
Voltage:
120 V
Air Flow CFM:
5538
Air Flow Efficiency:
215
Blade Finish:
Brushed Nickel
Blade Pitch:
15
Canopy:
5.71 Dia x 2.23 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
158 x 15
Motor Type:
DC
Ship Carton Height:
8.58
Ship Carton Length:
24.61
Ship Carton Width:
12.8
Ship Weight:
15.9
Sold By:
EA
Warranty:
Limited Lifetime
Weight:
13.3
Airflow Efficiency Low:
192
Airflow Efficiency Medium:
456
Avg Airflow Efficiency:
218
Avg CFM Energy:
3746
Avg Energy Use:
17
Avg Estimated Yearly Energy Cost:
5
Avg Estimated Yearly Energy Cost on HIGH:
7
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Cap Included:
No
Carton Cubic Feet:
1.56
Case Height:
8.58
Case Length:
24.61
Case Quantity:
1
Case Weight Pounds:
15.9
Case Width:
12.8
CEC Uploaded:
Yes
Ceiling To Blade Edge:
9.15
Ceiling To Bottom (No Light Kit):
9.98
CFM Low:
538
CFM Medium:
3371
Country of Origin:
China
Current Draw High:
0.36
Current Draw Low:
0.05
Current Draw Medium:
0.11
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
Yes
Housing Diameter:
11.02
Included Control:
TR205D
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
54
Location Rating:
Damp Rated
Max Ceiling Slope:
19
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
173
RPM Low:
28
RPM Medium:
105
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
26
Watts Low:
3
Watts Medium:
7
