Part Number: 218JT / Vendor ID Number: 230 / Custom:

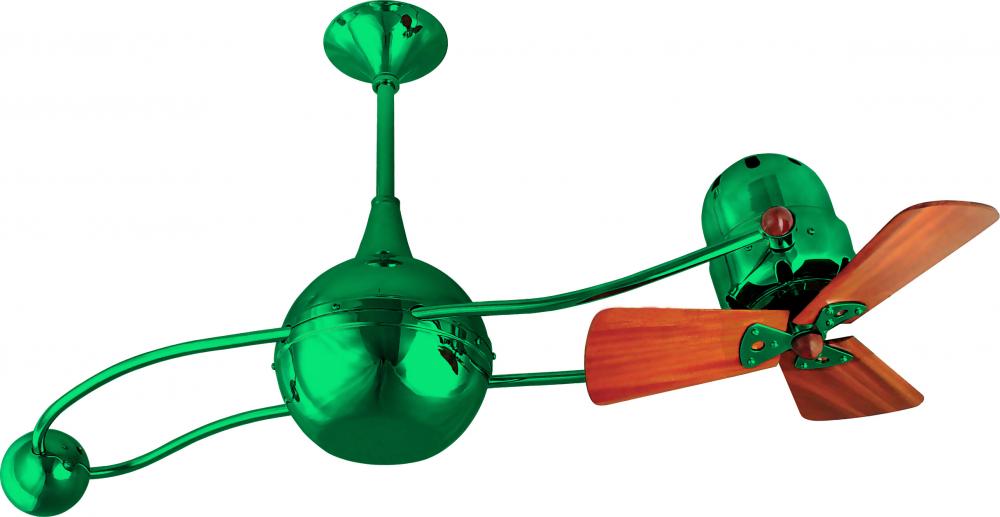

Brisa 2000 - Rotational Ceiling Fan - Esmerelda Finish - Wood Blades

Brisa 2000 - Rotational Ceiling Fan - Esmerelda Finish - Wood Blades

2,874
00
Pack Of: 1
  • Manufacturer availability unavailable.
Qty
Product Specification
Dimensions
Height: 10.00"
Width: 40.00"
Product Overview
Like satellites orbiting a planet, the Brisa's select mahogany blade head and lunar counterweight gently revolve about its spherical gear housing. The fan head can be infinitely positioned in a 180-degree arc for optimum air movement; the greater the angle of the motor to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Air Flow Efficiency:
Blade Finish:
Additional options that would change other selections
Blade Span:
Additional options that would change other selections
CFM Average:
Additional options that would change other selections
Additional Information
360 degrees rotation
All Matthews Gerbar fans are hand made and not mass produced.
Constructed of cast aluminum, heavy spun and stamped steel, this fan carries a limited lifetime warranty.
Decora-style 3-speed wall switch in white.
Each unique motor mount and fan head knob is made of genuine marbleized Bakelite.
Flat ceiling canopy. Not compatible with vaulted ceiling canopy accessory.
Increasing angles of fan heads to support poles increased speed of axial rotation
Made in Brazil. Assembled and tested with care in the USA.
Made with moisture and humidity-resistant materials suitable for covered outdoor spaces such as patios, porches, or sunrooms
Matthews Gerbar fans do not oscillate on their own. The fan heads can be pivoted to change the direction.
Matthews rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans.
Medium: rooms 76-144 sq. ft. 36-42 inch blade span
Optimum fan head position is 60 degrees
Quiet operation with a soothing white-noise effect
Standard Equipment: 10" Downrod. Additional downrod lengths are available and sold separately to achieve the optimal look and functionality for your space
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Miscellaneous /vendors/vendorImages miscellaneous.jpg
Green /vendors/vendorImages green.jpg
Style:
Contemporary
Traditional
Transitional
Option:
Outdoor
Damp Rated
Title 20
Location Rating:
Damp Rated
Category:
Ceiling Fan
Finish:
Esmeralda
Style:
Contemporary, Transitional
Option:
Outdoor
Title 20
Family:
Brisa 2000
Air Flow Efficiency:
45
Amperage:
0.26
Blade Finish:
Solid Mahogany Wood
Blade Pitch:
19
Blade Span:
16
Canopy:
5.5 W x 5.5 D
Down Rod Included:
10
Introduction Date:
01/01/2002
Keyword(s):
Bedroom, Dining Room, Entryway, Foyer, Hallway, Kitchen, Living Room, Office, Bathroom, Outdoor, Patio, Poolside, Exterior
Light Kit Included:
No
Material:
Cast Aluminum, Heavy Spun/Stamped Steel, Marbleized Bakelite
Max Height:
82
Motor Type:
AC
Order Minimum:
1
Ship Carton Height:
12
Ship Carton Length:
36
Ship Carton Width:
15
Ship Weight:
28
Vendor Ship Method:
Small Parcel
Warranty:
Limited Lifetime
Weight:
21
Assembly Required:
Yes
Blade Material:
Solid Brazilian Mahogany
Blade Size:
40
CFM Average:
1989
CFM High:
2376
CFM Low:
1602
Color:
Mahogany
Commercial or Residential Use:
Both
Country of Origin:
Brazil
Downrod Diameter:
0.75
Fan Wattage at High Speed:
52.44
Hanging Type:
Downrod
Height Adjustable:
Yes
Included Control:
Wall Control
Indoor:
Yes
Location Rating:
Damp Rated
Made to Order:
Yes
Marine Rated:
No
Material Percentage:
40% Cast Aluminum, 40% Heavy Spun/Stamped Steel, 20% Marbleized Bakelite
MIN Height:
15
Motor Reversible:
No
Motor/Housing Finish:
Esmerelda
Noise Level:
Soothing White Noise
Number of Blades:
3
Number of Boxes:
1
Number Of Speeds:
3
Oscillates:
No
Outdoor:
Yes
Prop 65 Description:
View
Returnable:
No
RPM High:
1336
RPM Low:
866
Safety Rating:
UL Approved, CUL Approved
Ship Container:
Box
Ship Lead Time:
10-12 Weeks
Sloped Ceiling Compatible:
Optional
Title 20:
Yes
Wood Finish:
Mahogany Tone
Wood Type:
Mahogany
