Part Number: K5NH / Vendor ID Number: 90 / Custom:

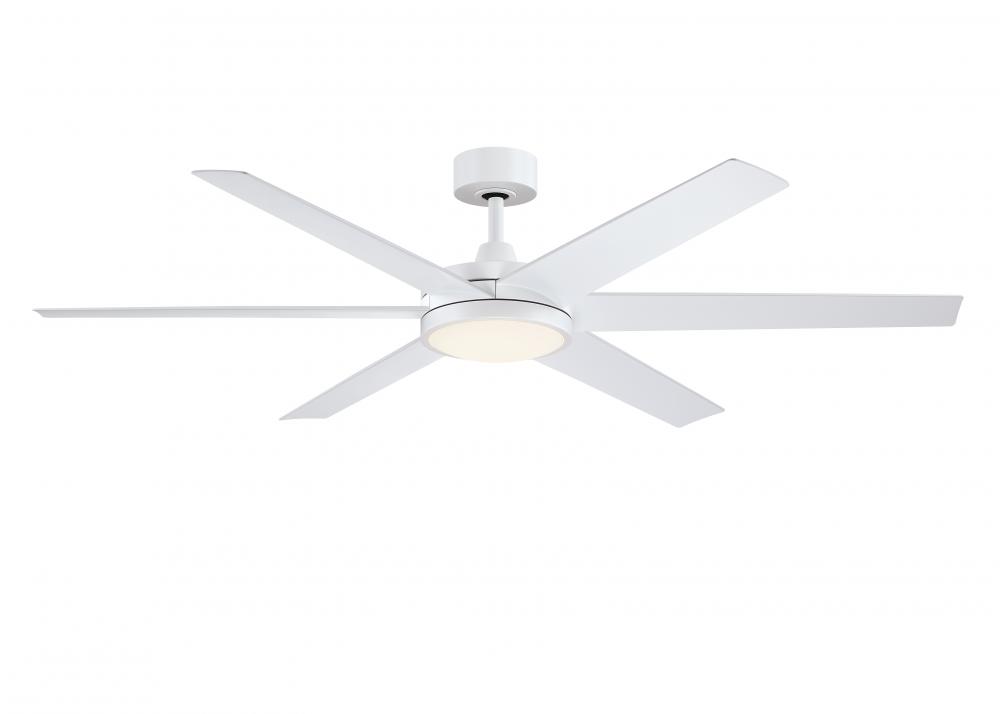

Brawn 64 inch Indoor/Outdoor Ceiling Fan with LED CCT Select Light Kit

Brawn 64 inch Indoor/Outdoor Ceiling Fan with LED CCT Select Light Kit

619
98
Pack Of: 1
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Qty
Product Specification
Dimensions
Height: 14.60"
Width: 64.00"
Length: 64.00"
Product Overview
Shown in Fanimation's classic Matte White finish with matching Matte White blades. A 30W LED CCT Select Light Kit paired with fanSync Wi-Fi makes this 64 inch ceiling fan a dual threat of brains and Brawn.
Product Availability
Blade Finish:
Additional options that would change other selections
Additional Information
CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds
FINISH: Matte White ceiling fan from the Brawn Collection features 6 Matte White blades
Infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 6-in length downrod.
LIGHTING: Includes 30-watt dimmable LED light kit with Correlated Color Temperature (CCT) Select Technology, providing a selection of light colors ranging from warm white, bright light or daylight with an opal frosted glass
LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 16-speed, quiet and energy efficient DC motor provides airflow up to 7,443 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
WARRANTY: Limited lifetime
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Efficient
Outdoor
Damp Rated
LED
Number of Blades:
6 Blades
Location Rating:
Damp Rated
Category:
Unipack
Finish:
Matte White
Option:
Energy Efficient
LED
Outdoor
Family:
Brawn
Voltage:
120 V
Shade:
Opal Frosted
Number of Bulbs:
1 Bulbs
Air Flow CFM:
7443
Air Flow Efficiency:
228
Blade Finish:
Matte White
Blade Pitch:
11
Bulb Type:
LED Module
Canopy:
5.9 Dia x 2.5 H
Harmonized Codes:
8414.51.3000
Kelvin:
3000, 4000, 5000
Light Kit Included:
Yes
Lumens / Light Output:
2700
Motor Size:
DC 126 x 12
Motor Type:
DC
Ship Carton Height:
7.87
Ship Carton Length:
31.34
Ship Carton Width:
18.54
Ship Weight:
23.59
Sold By:
EA
Warranty:
Limited Lifetime
Weight:
20.29
Airflow Efficiency Low:
713
Airflow Efficiency Medium:
561

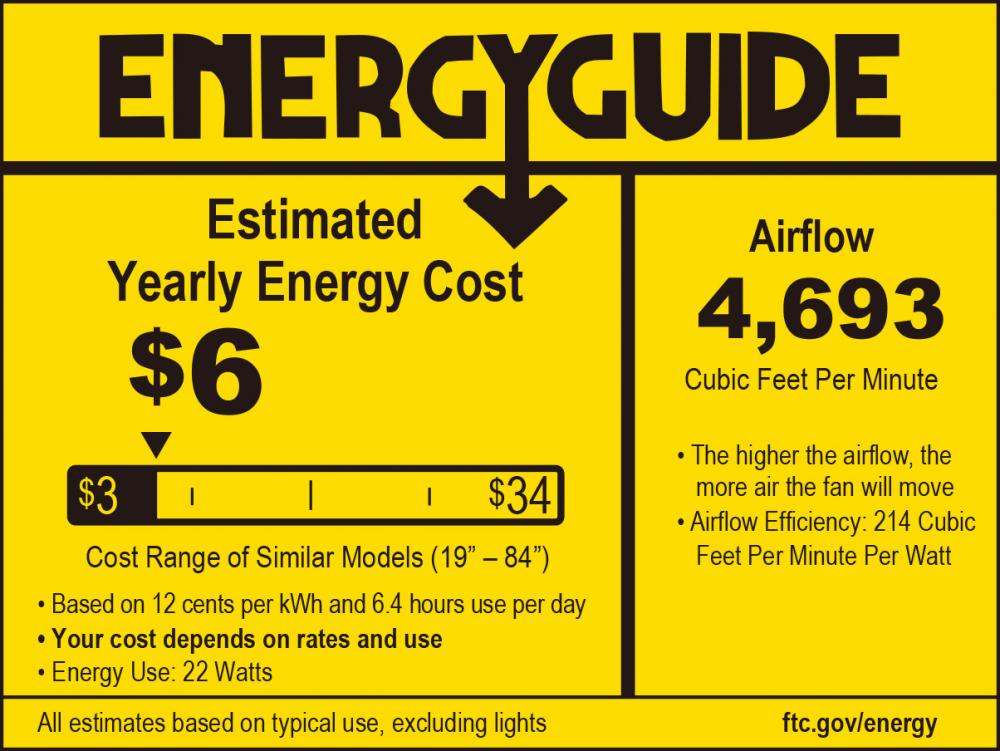

Avg Airflow Efficiency:
214
Avg CFM Energy:
4693
Avg Energy Use:
22
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
9
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
64
Bulb Base:
Connector Pin
Bulb CRI:
90
Cap Included:
No
Carton Cubic Feet:
2.65
Case Height:
7.87
Case Length:
31.34
Case Quantity:
1
Case Weight Pounds:
23.59
Case Width:
18.54
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12
Ceiling To Bottom (With Light Kit):
14.6
CFM Low:
1576
CFM Medium:
4749
Country of Origin:
China
Current Draw High:
0.45
Current Draw Low:
0.04
Current Draw Medium:
0.13
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
6
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
10.5
Included Control:
TR305
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
29
LED:
Yes
Light Kit Energy Star 4:
No
Location Rating:
Damp Rated
Max Ceiling Slope:
27
Max Wattage:
30 W
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
6
Number Of Speeds:
16
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
136
RPM Low:
29
RPM Medium:
86
Safety Rating:
UL Approved
Voltage Cycles:
60 Hz
Watts High:
33
Watts Low:
2
Watts Medium:
8
