Item Sales Info

Part Number: X6NHD / Vendor ID Number: 27 / Custom:

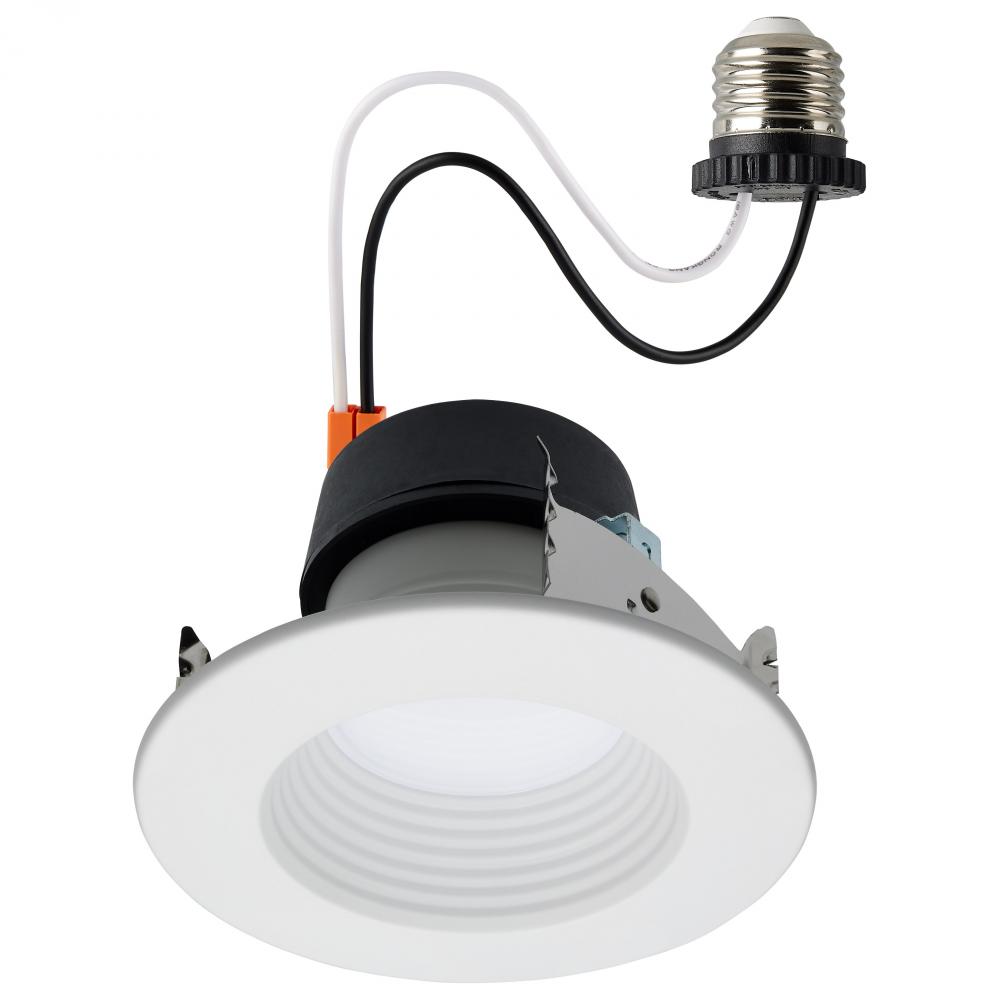

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4

Pack Of: 1

Manufacturer may be Out Of Stock.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 3.25"

Width: 5.12"

Finish

White

Product Overview

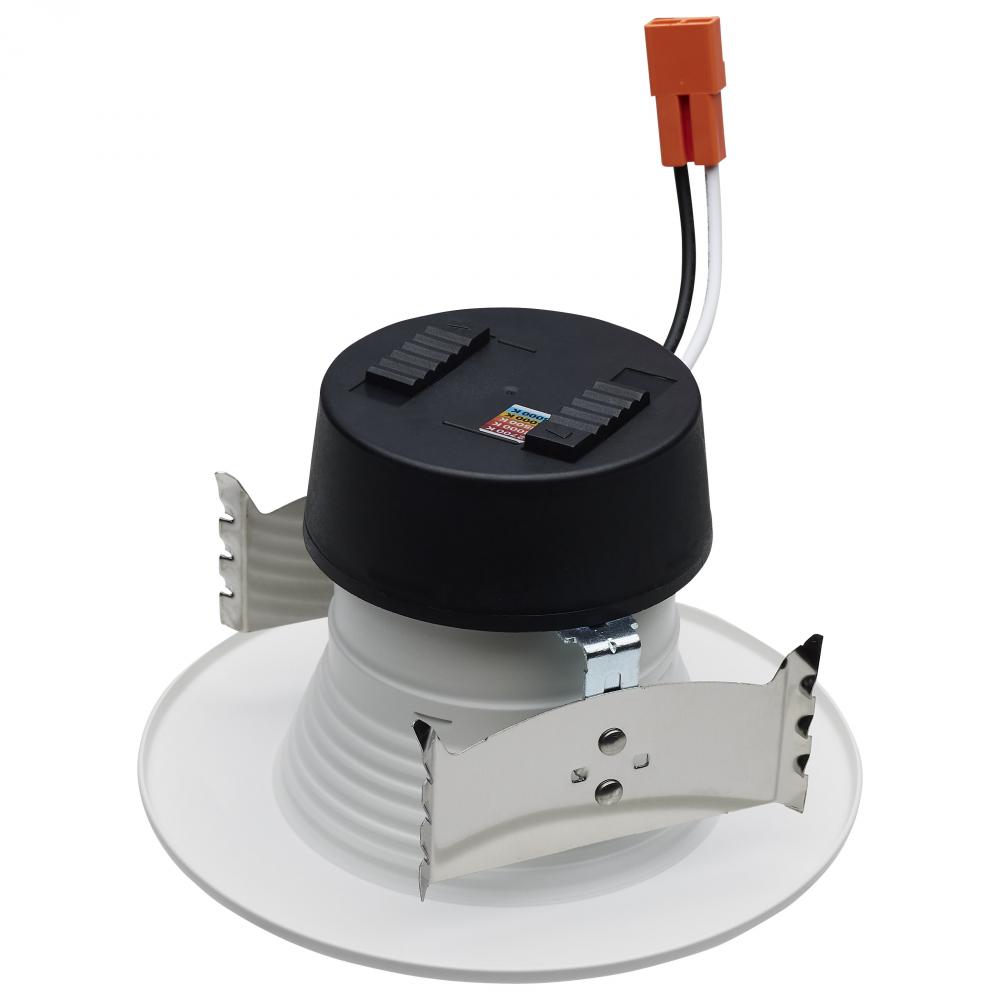

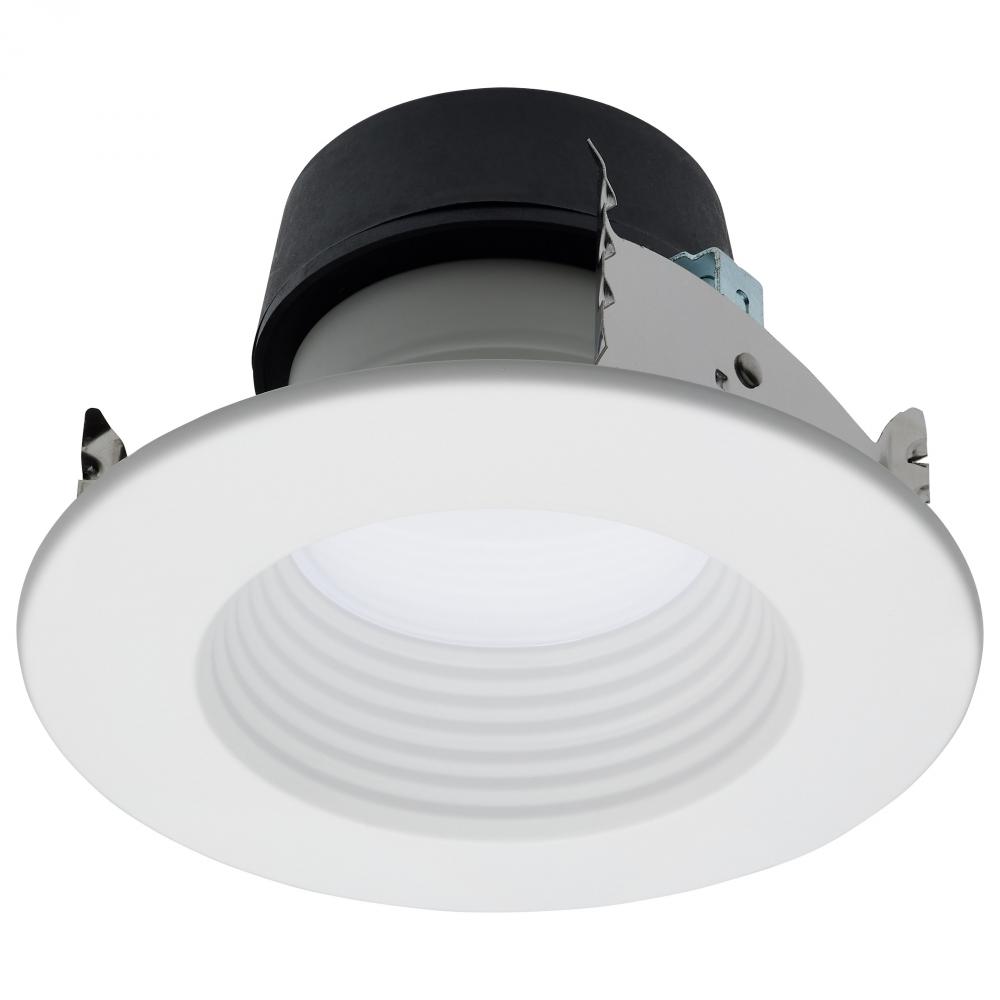

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 Inch; Round Shape; White Finish; 120 Volts

Product Availability

Purchase now and we'll ship when it's available

Technical Details

Details

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White /vendors/vendorImages white.jpg

Option:

Energy Star /vendors/vendorImages energy star.jpg

LED

Prop 65 /vendors/vendorImages prop65.png

Finish:

White /vendors/vendorImages white.jpg

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

5.12

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Lumens:

600L/750L/900L

Ship Carton Height:

5.31

Ship Carton Length:

5.31

Ship Carton Width:

3.43

Warranty:

5-Years

Air Tight:

Amps:

0.050/0.062/0.080A

ANSI Base:

E26 Adapter

BAA Compliant:

Beam Spread:

CA Prop-65:

Lead

Can Size:

4 in.

Carton Cubic Feet:

0.056

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.00 in. Cutout

Connection:

Connector or Adapter

Country Of Origin:

Thailand

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Phase cut

Efficacy:

103.45/107.14/94.74 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-3354723

FCC Compliant:

Yes

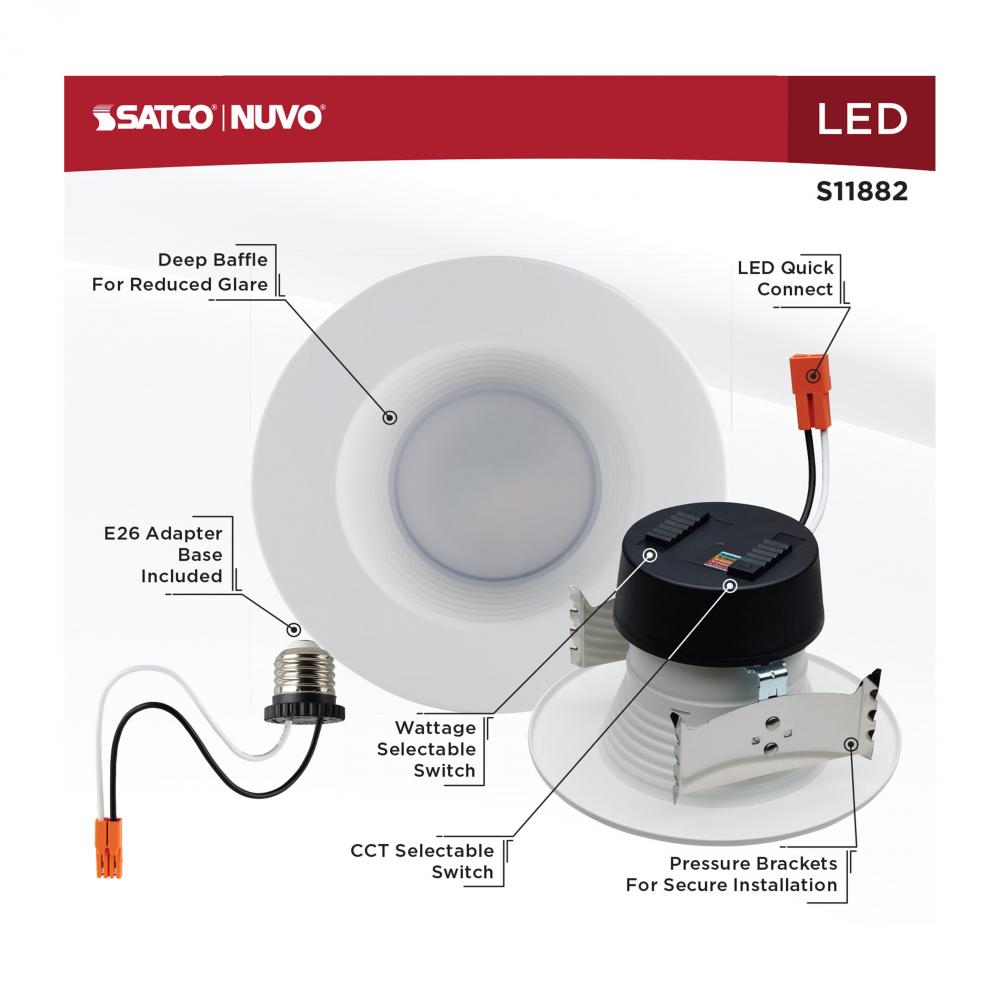

Feature 1:

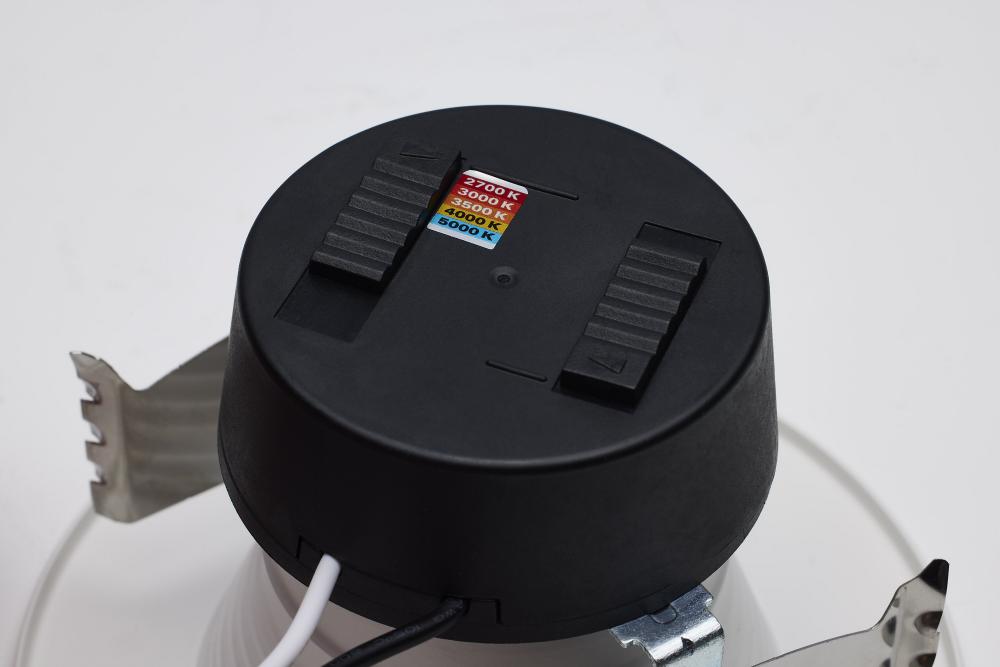

CCT and Wattage Selectable

Feature 2:

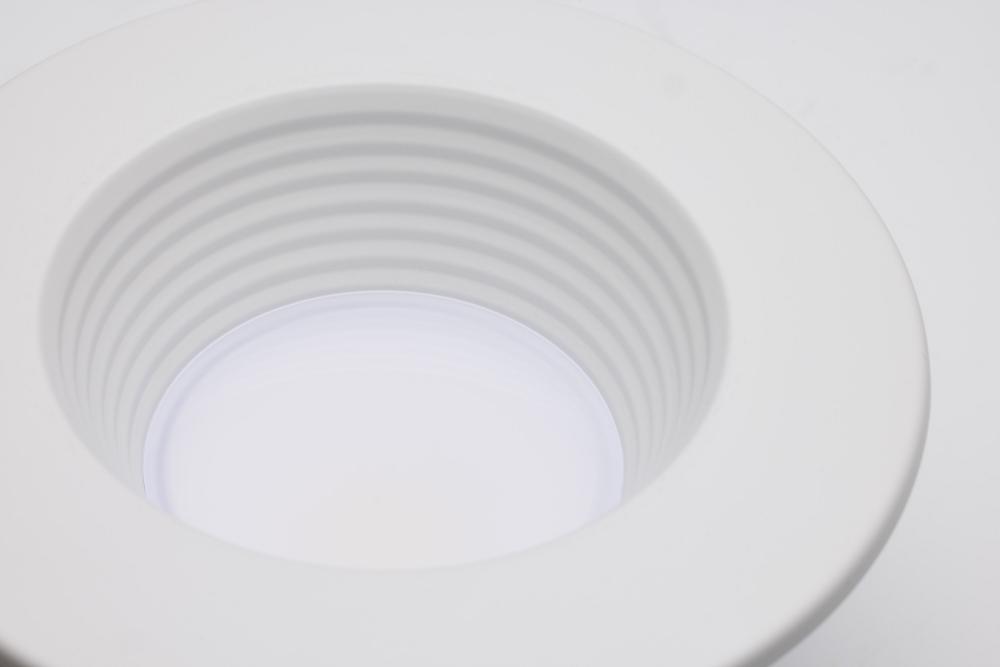

Stepped Baffle for Reduced Glare

Feature 3:

Dimmable

Feature 4:

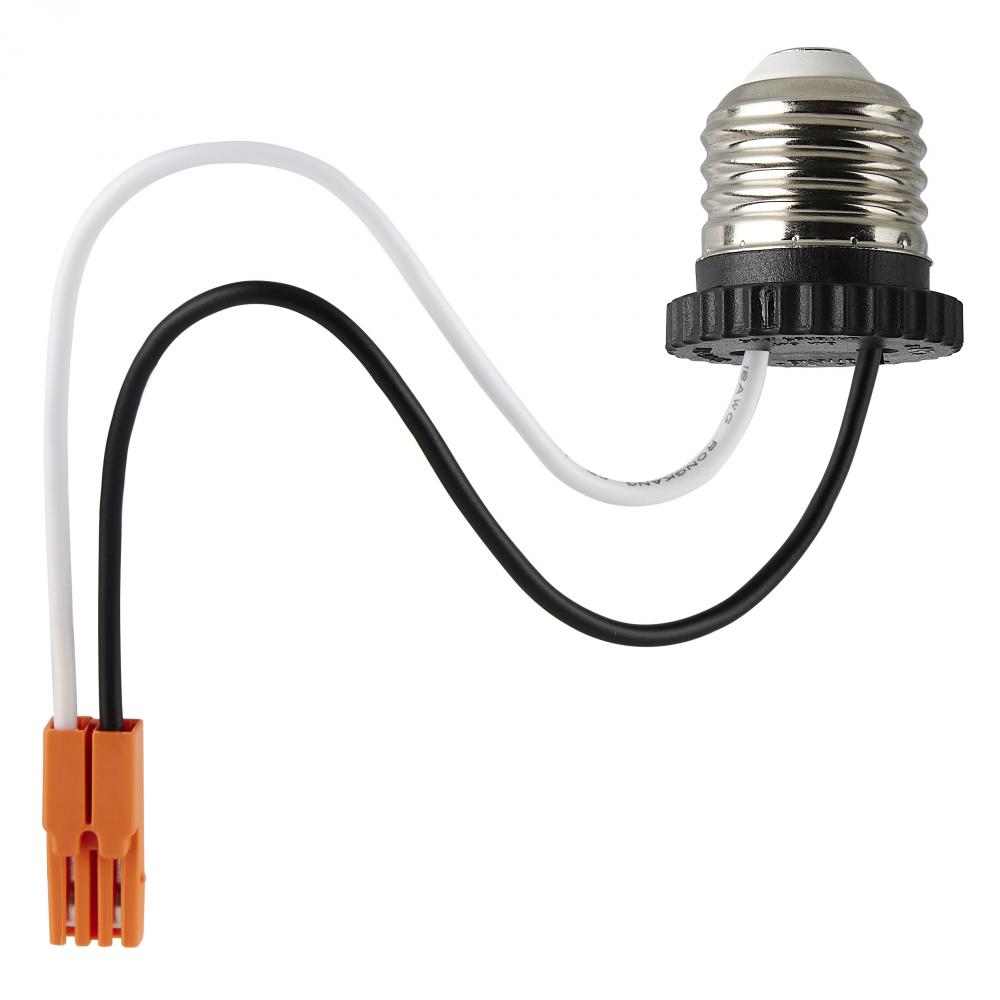

E26 Adapter Included

Feature 5:

90 CRI

Feature 6:

Wet location rated

Feature 7:

Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements

Feature 8:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Round

Has Camera:

Has Emergency Battery:

IC Rated:

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Matte Frosted

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's S11882 4-inch round field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users ca

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Color Box

Power Factor:

0.94

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enha

Safety Listing:

cETLus - Classified

SDS class:

LED_Fixture

Short Description:

9.5WLED/DLR/4/WS/5CCT/RD/DB

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<25%

Trim Color:

White

Wattage Selectable:

Yes

Weight Lb.:

0.39
