Item Sales Info

Part Number: X9P5U / Vendor ID Number: 27 / Custom:

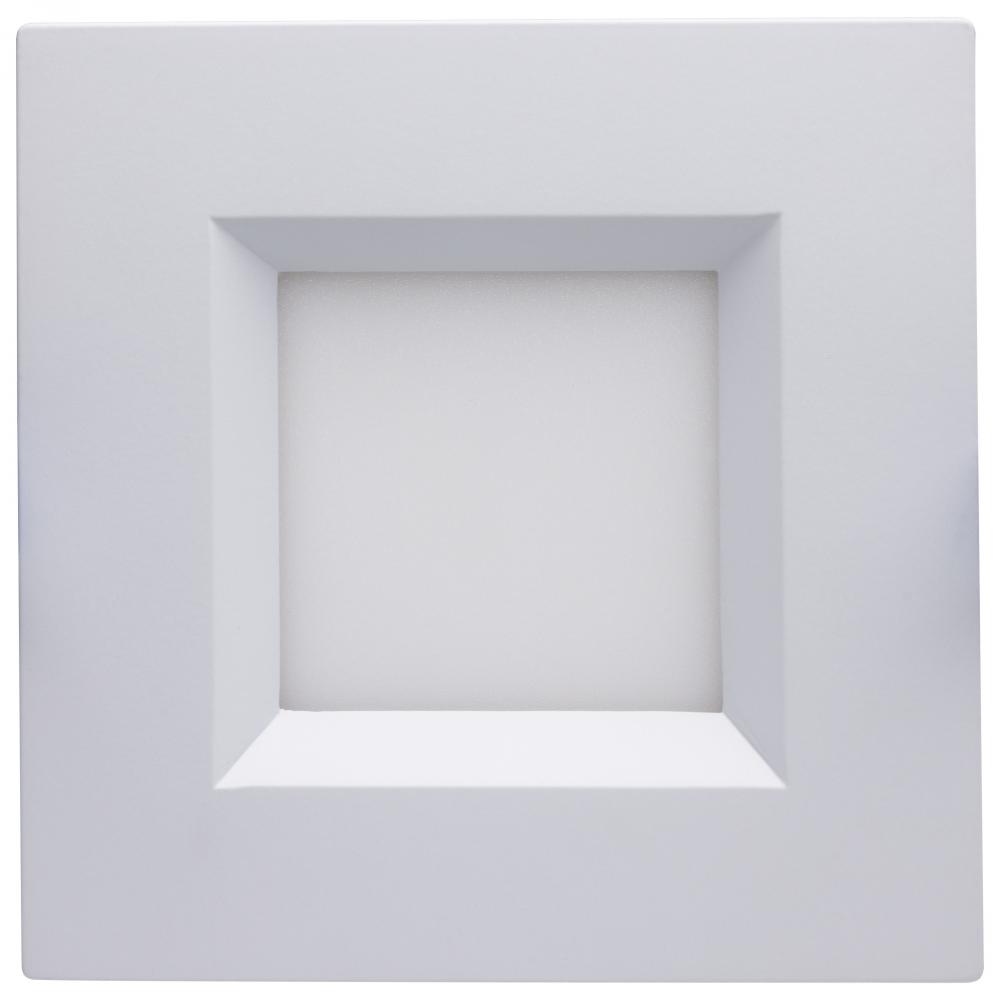

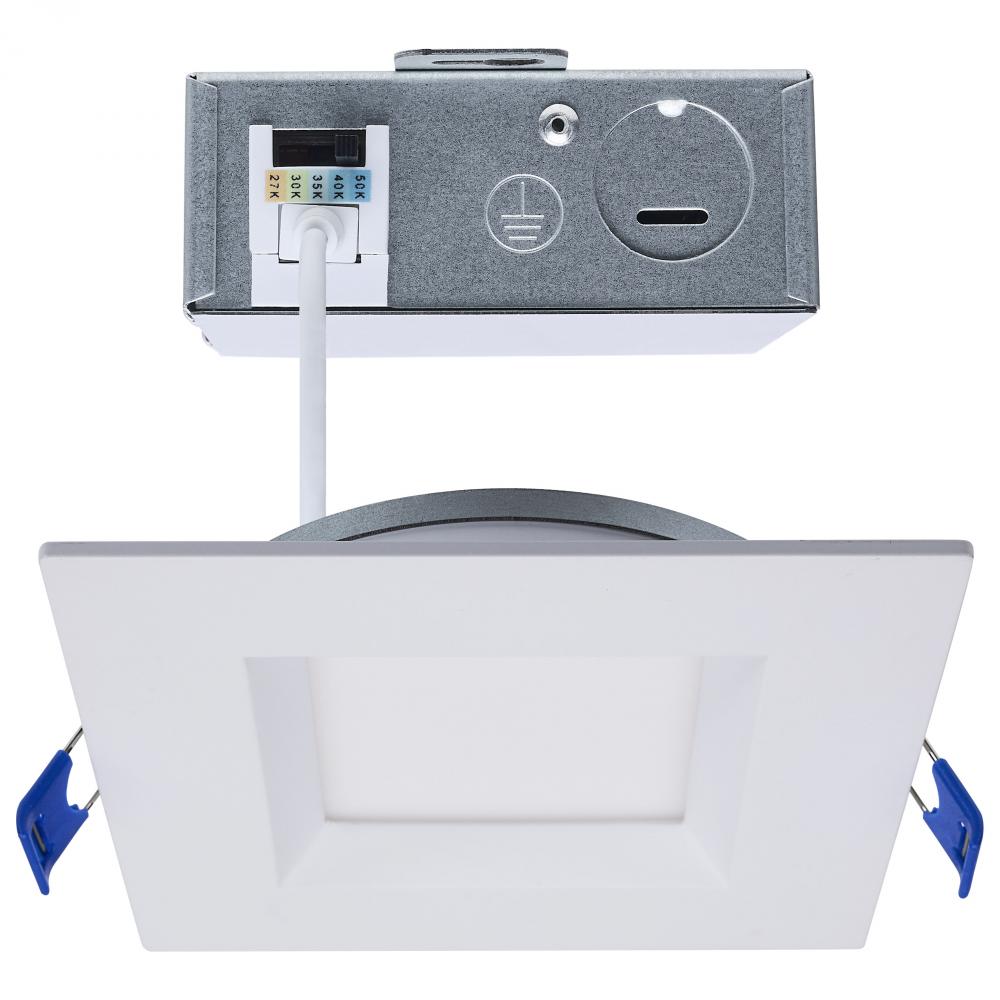

9 Watt LED Direct Wire Downlight; Slimfit; Smooth Baffle; 4 Inch; CCT Selectable; Square; Remote

9 Watt LED Direct Wire Downlight; Slimfit; Smooth Baffle; 4 Inch; CCT Selectable; Square; Remote

Pack Of: 1

Manufacturer may be Out Of Stock.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

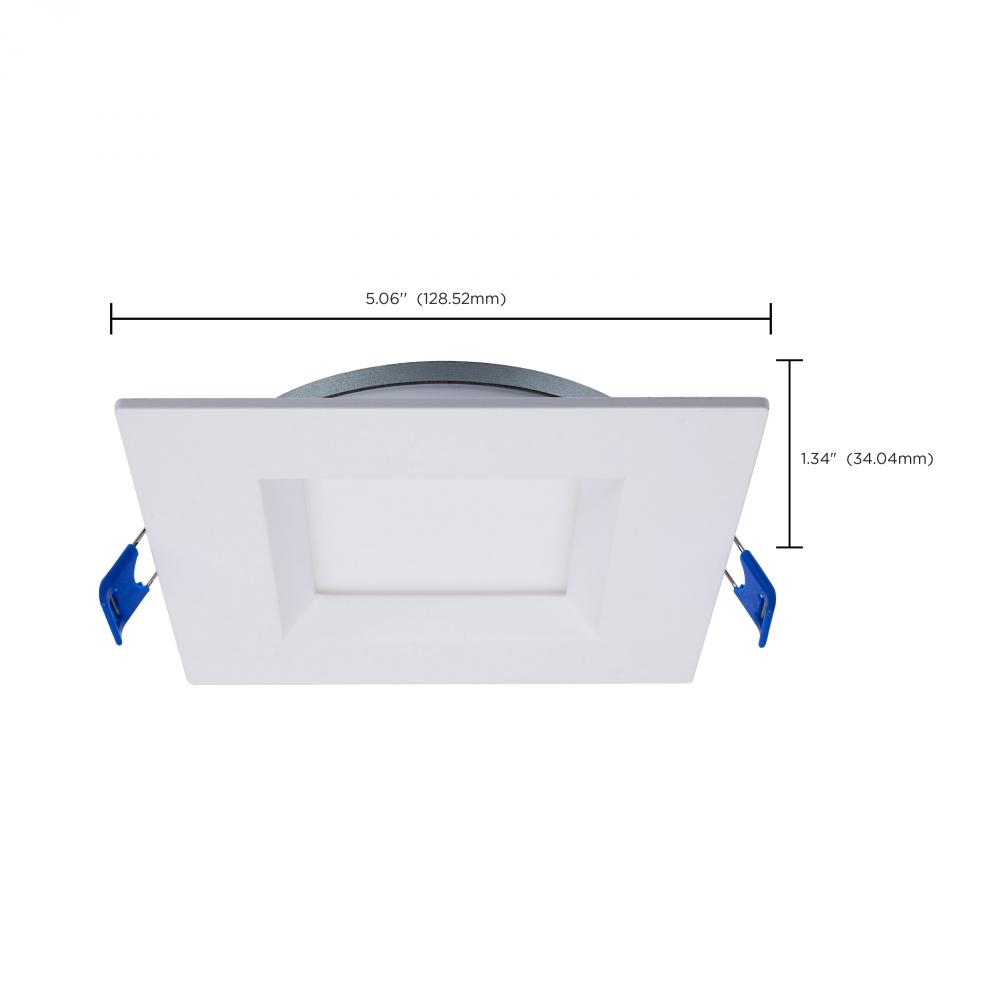

Dimensions

Height: 1.34"

Width: 5.06"

Finish

Matte White

Product Overview

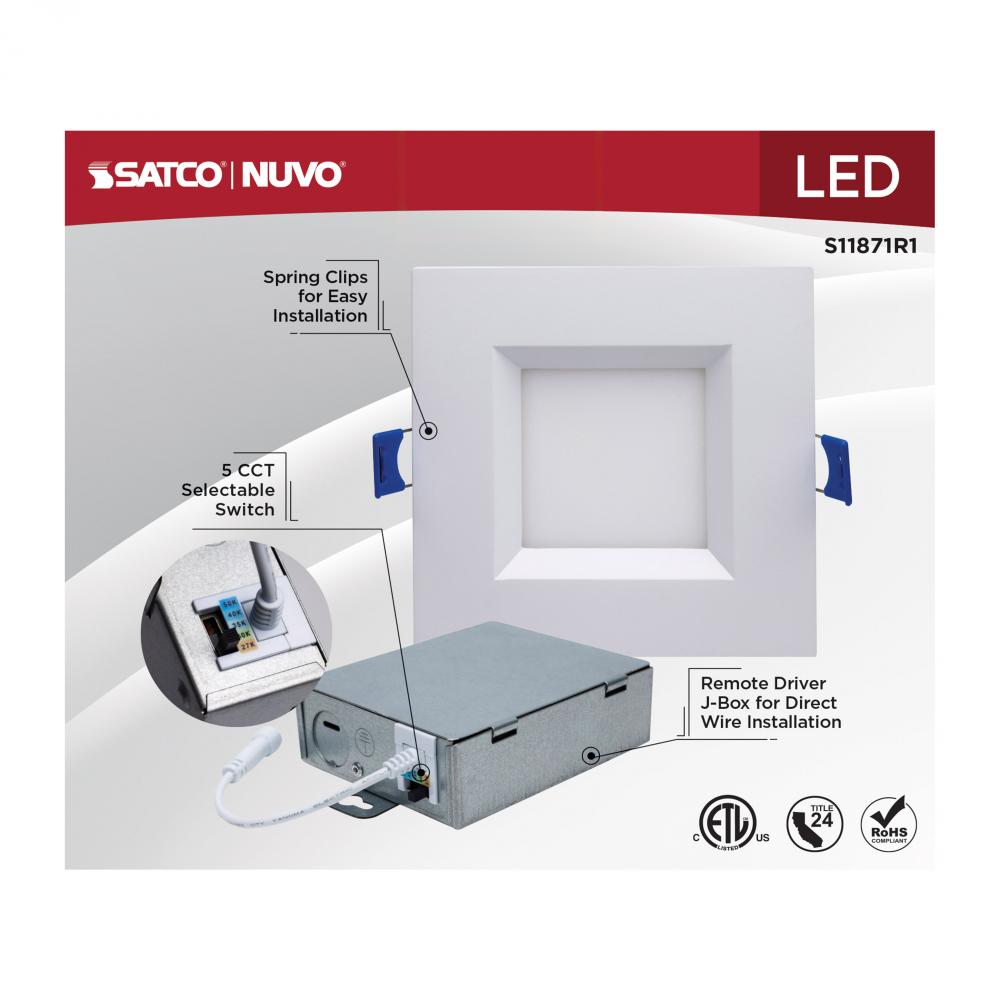

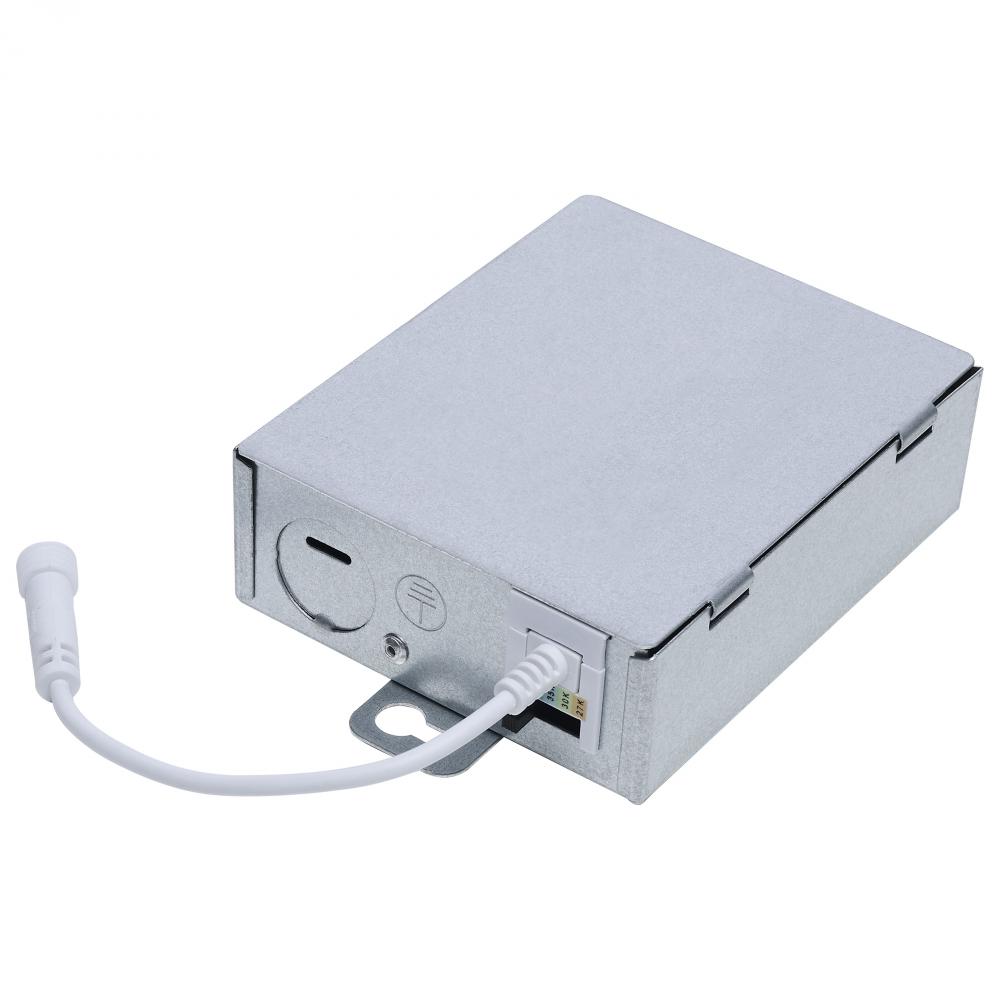

9 Watt LED Direct Wire Downlight; Slimfit; Smooth Baffle; 4 Inch; CCT Selectable; Square; Remote Driver; White Finish

Product Availability

Purchase now and we'll ship when it's available

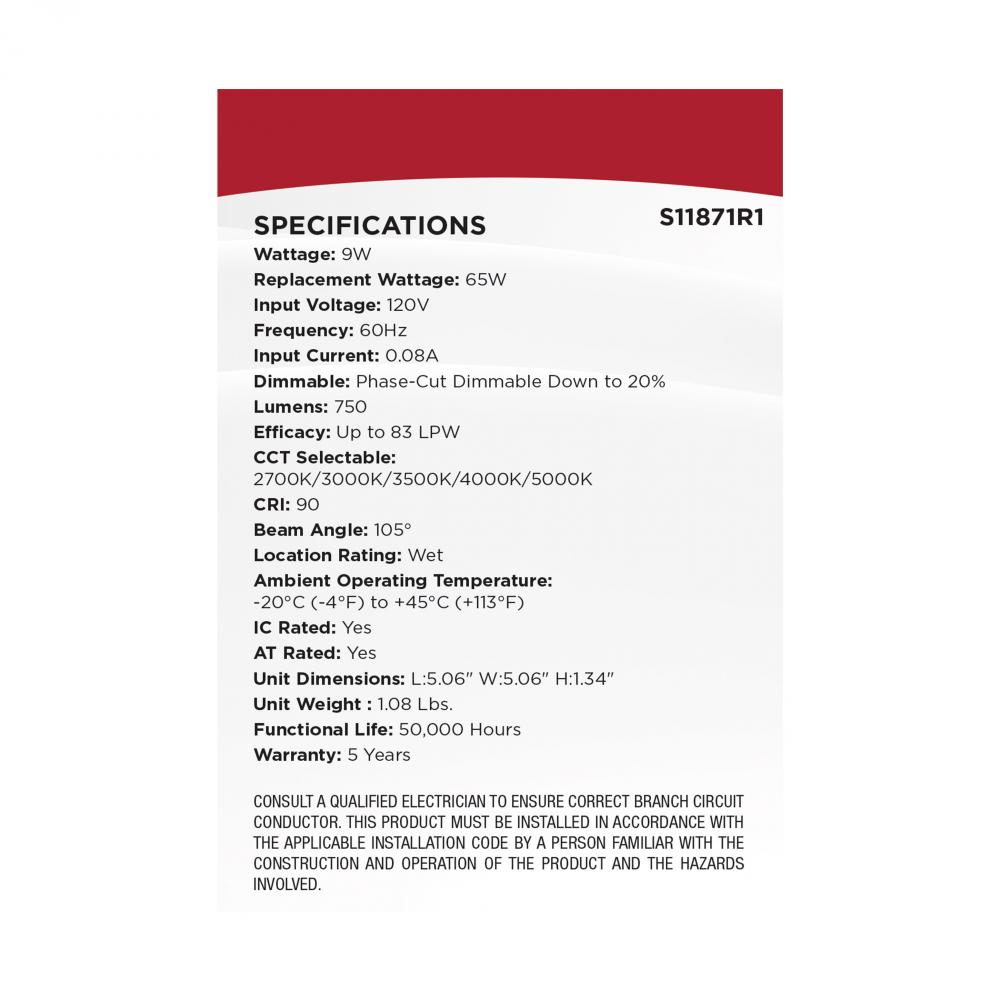

Technical Details

Details

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Energy Star /vendors/vendorImages energy star.jpg

LED

Prop 65 /vendors/vendorImages prop65.png

Finish:

Matte White

Category:

Recessed

Sub Category:

Direct Wire

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.6010

Length:

5.06

Lumens:

750L

Ship Carton Height:

5.31

Ship Carton Length:

6.1

Ship Carton Width:

3.54

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.075A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

105

CA Prop-65:

Lead

Carton Cubic Feet:

0.0664

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

4.25 in. Cutout

Closet Rated:

Yes

Connection:

Direct Wired

Country Of Origin:

Thailand

CRI:

Dimmable Down To:

100 to 20 percent

Dimming Type:

Phase cut

Efficacy:

83.33 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-4046695

FCC Compliant:

Yes

Feature 1:

5 CCT Selectable (2700K to 5000K)

Feature 2:

4-Inch Square, White Finish

Feature 3:

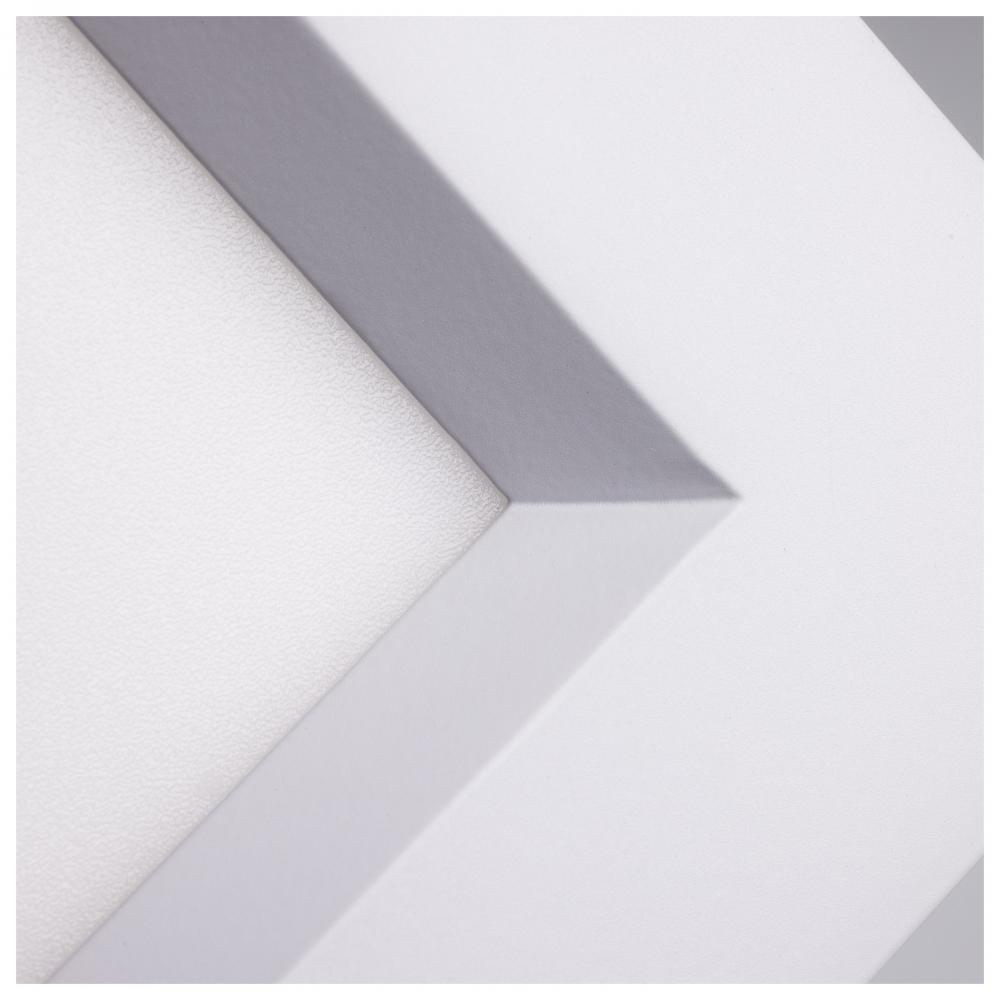

Regress Baffle for Reduced Glare

Feature 4:

90 CRI High Quality Illumination

Feature 5:

Dimmable

Feature 6:

Wet location rated

Feature 7:

IC Rated and Airtight

Feature 8:

50,000 Hour Functional Life

Feature 9:

5 Year Warranty

Finish Family:

White

Fixture shape:

Square

Has Camera:

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Matte Frosted

Lens Material:

Polystyrene (PS)

Long Description:

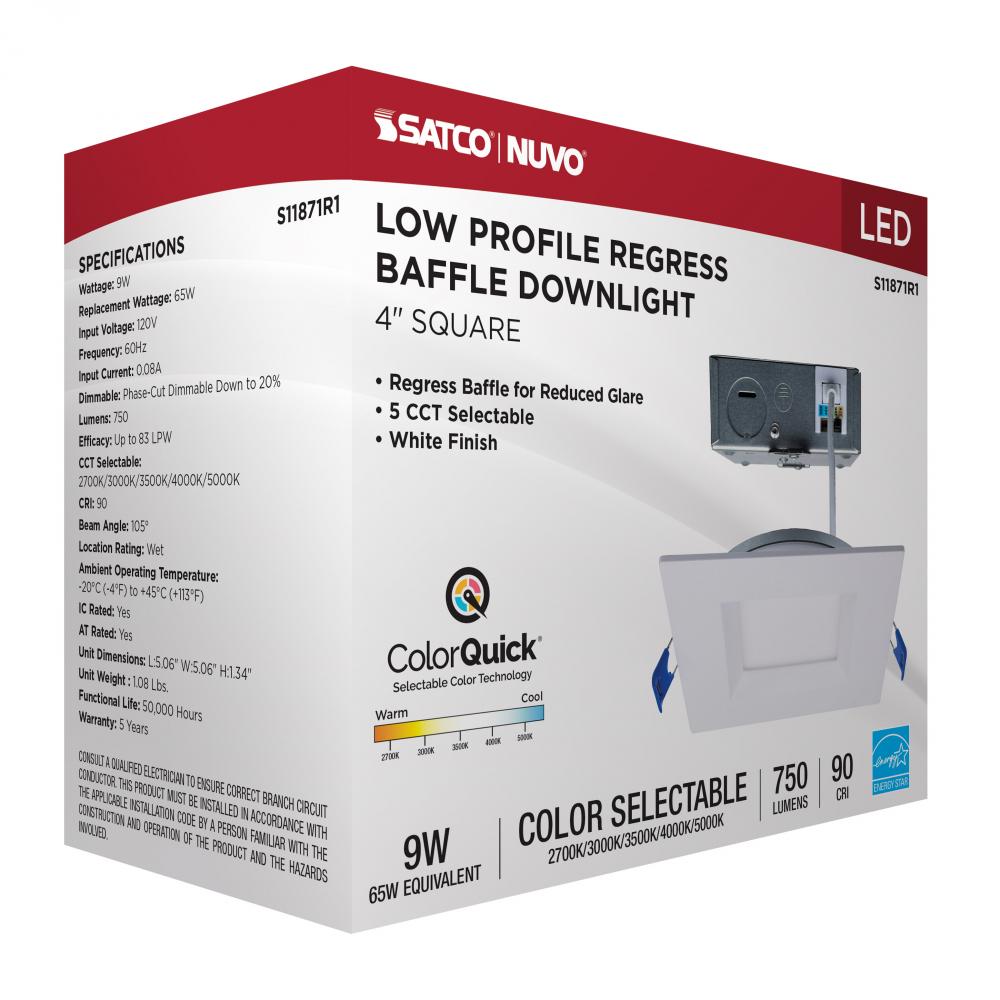

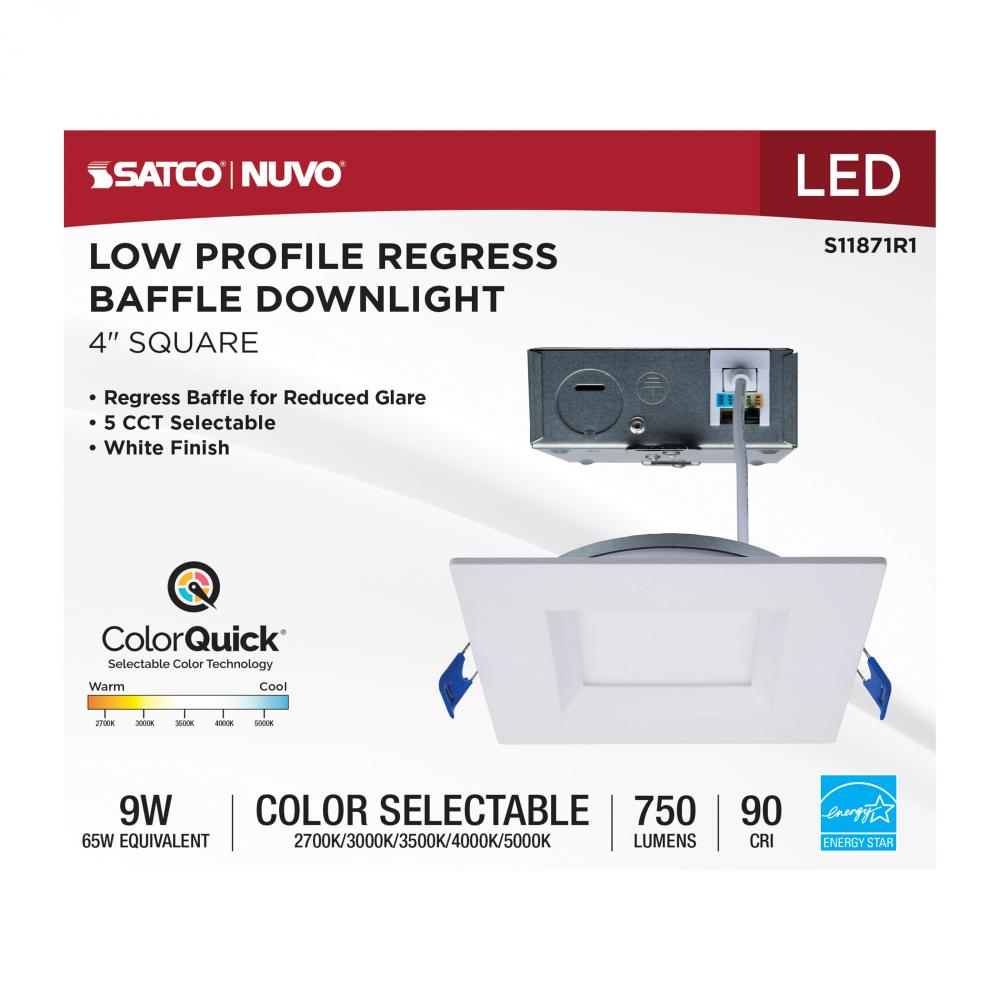

SATCO NUVO's low-profile 4" square regress baffle downlight, S11871R1, combines performance, versatility, and ease of installation. It features 5 CCT selectable settings (2700K–5000K) to accommodate a wide range of lighting preferences, while the

Material:

Aluminum

Mounting Diameter:

4.25

Mounting Height:

1.5

Mounting Procedure:

Recessed Ceiling

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's low-profile regress baffle downlights combine performance, versatility, and ease of installation. Available in 4" and 6" sizes with both round and square trim options, they feature 5 CCT selectable settings (2700K–5000K) to accom

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

9WLED/DW/4/CCT-SEL/SQ/RD/WH

Sloped Ceiling Compatible:

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:

1.08
