Item Sales Info
Part Number: X9N77 / Vendor ID Number: 27 / Custom:

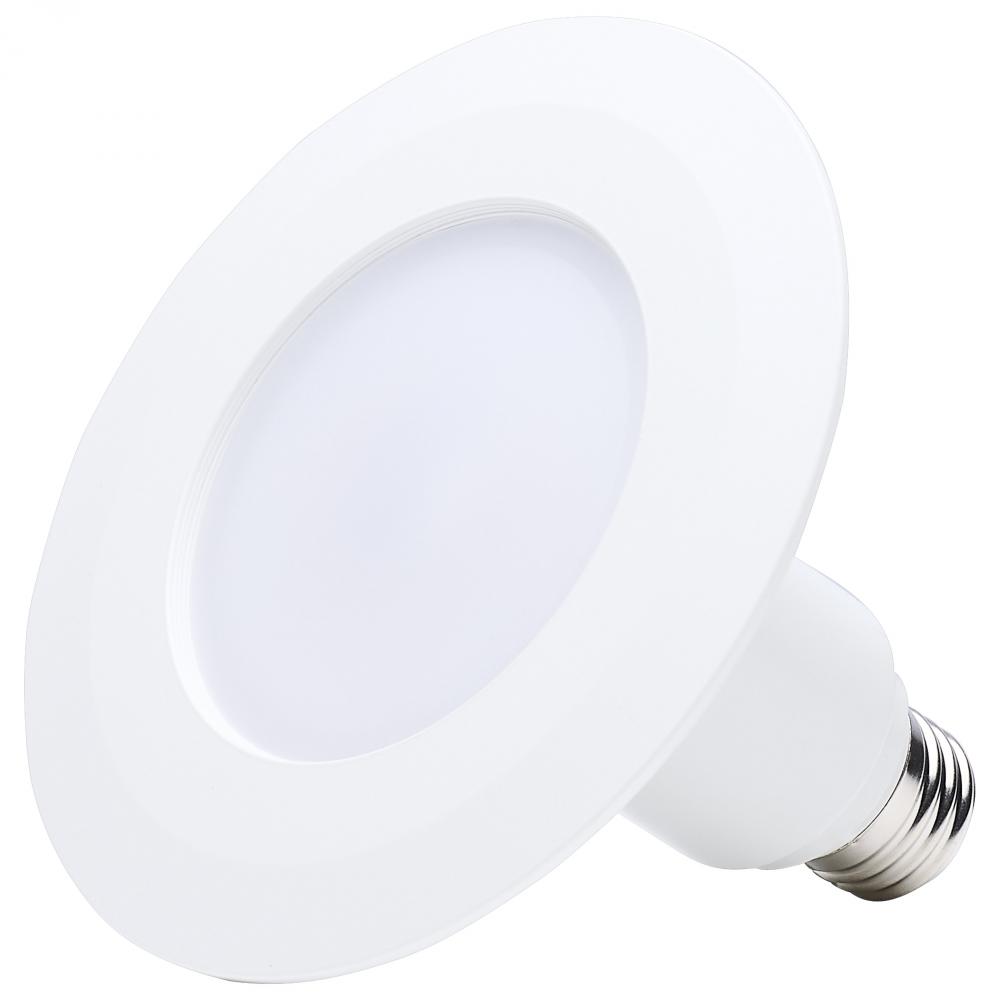

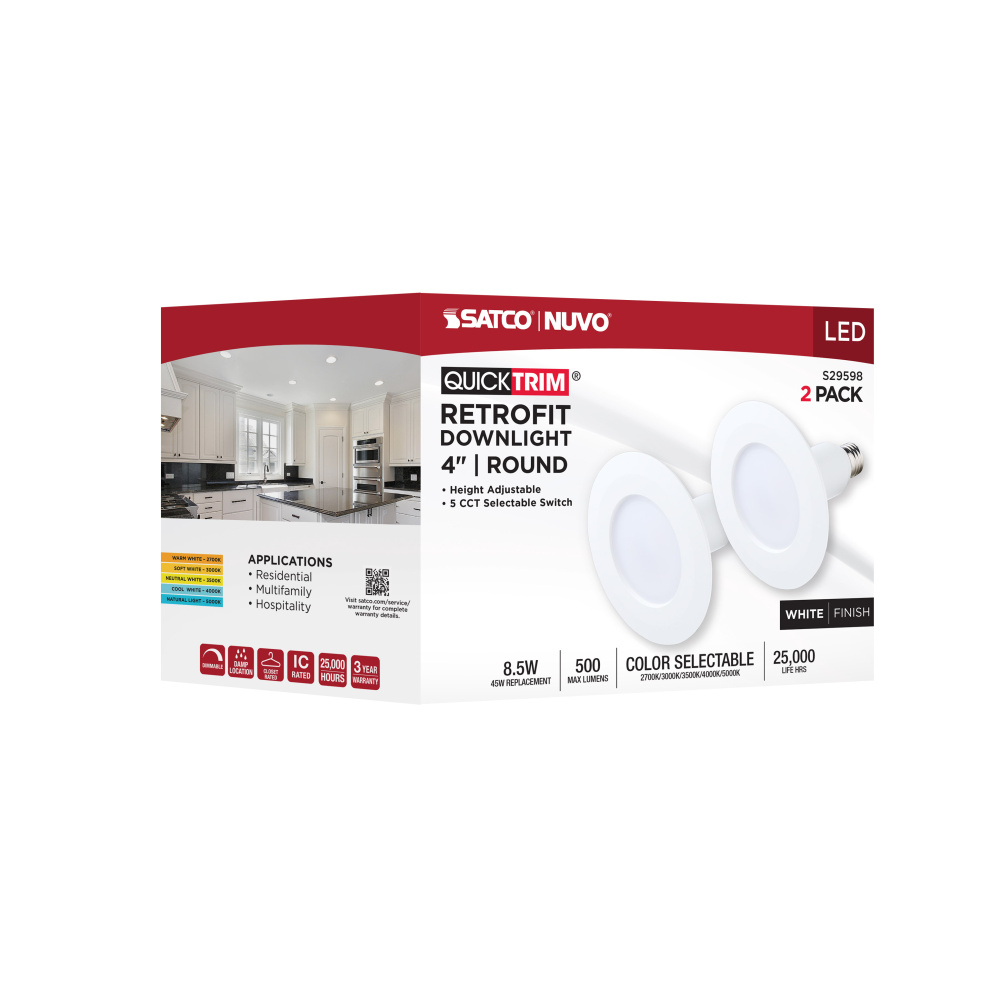

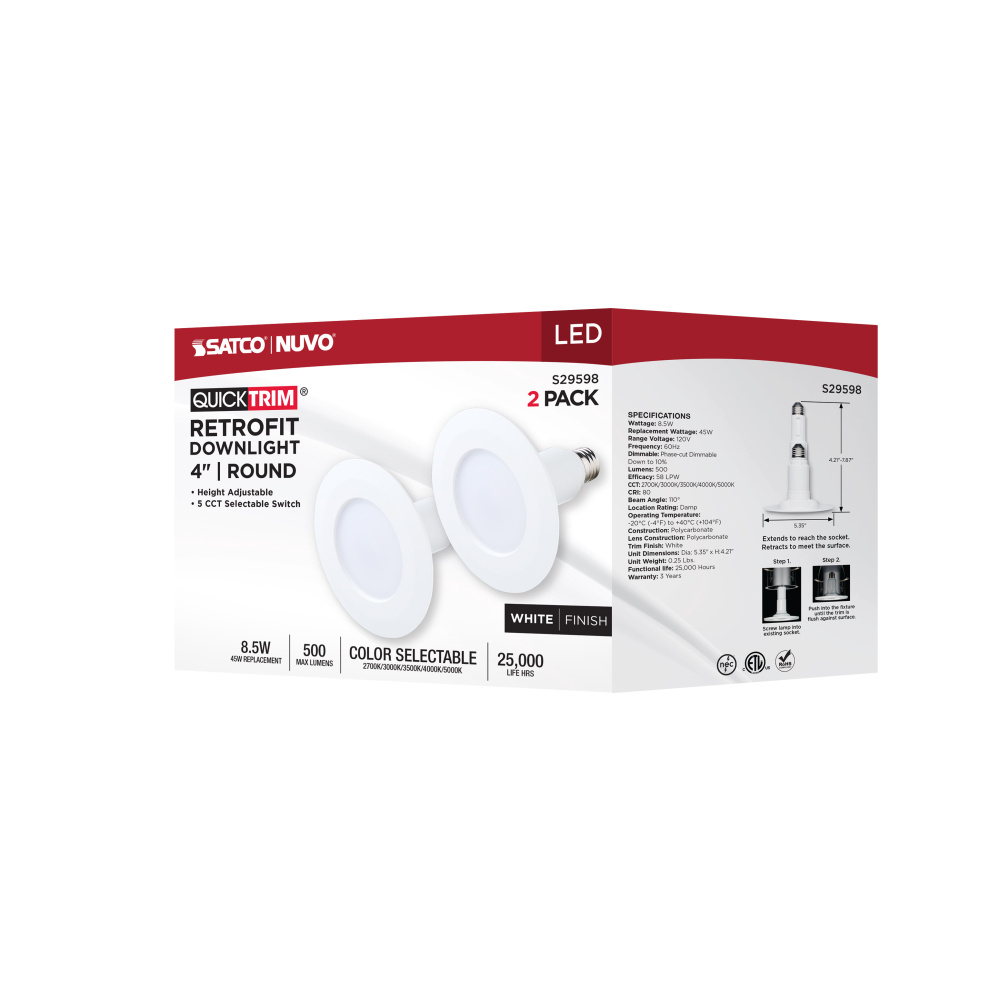

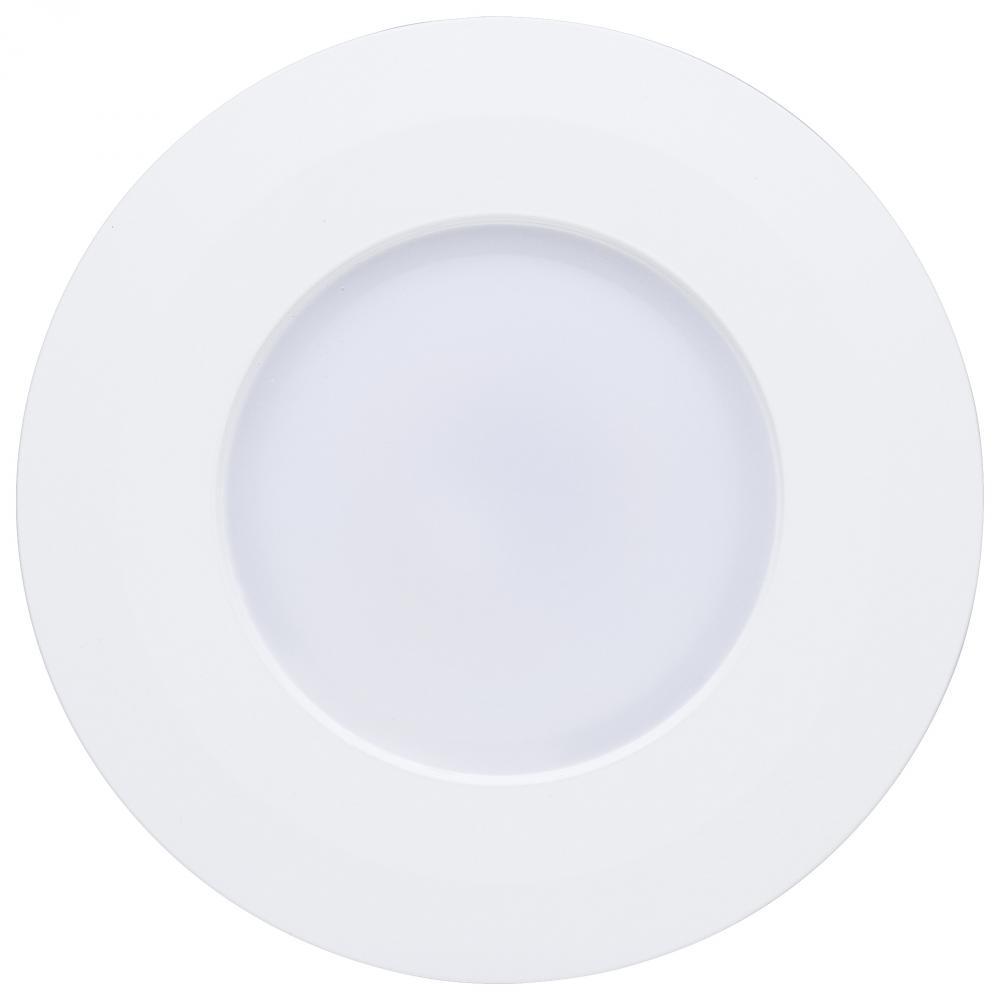

8.5 Watt LED Downlight Retrofit; 4 Inch; CCT Selectable; 120 Volt; 2 Pack

8.5 Watt LED Downlight Retrofit; 4 Inch; CCT Selectable; 120 Volt; 2 Pack

24
10
Pack Of: 1
  • Manufacturer has 1712 items available.
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

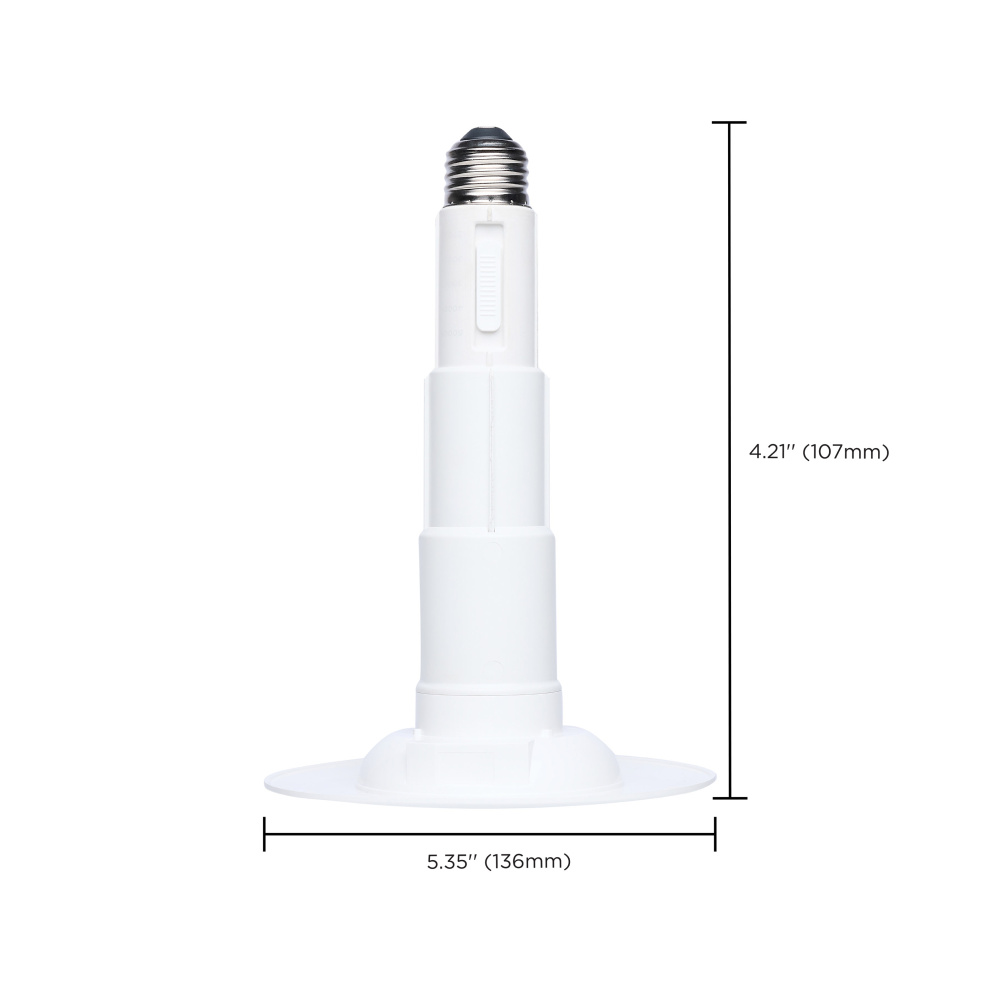

Dimensions
Height: 4.21"
Width: 5.35"
Finish
White
Product Overview
8.5 Watt LED Downlight Retrofit; 4 Inch; CCT Selectable; 120 Volt; 2 Pack
Product Availability
    Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Retrofits
Bulb Hours:
25000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
5.35
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
500L
Ship Carton Height:
5.91
Ship Carton Length:
7.64
Ship Carton Width:
4.65
Warranty:
3-Years
Air Tight:
No
Amps:
0.071A
ANSI Base:
E26
BAA Compliant:
No
Beam Spread:
110
CA Prop-65:
Lead
Can Size:
4 in.
Carton Cubic Feet:
0.1215
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Non-Compliant - Compliance Score <297
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Ceiling Aperture:
4.25 in. Cutout
Closet Rated:
Yes
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
58.82 LPW
FCC Compliant:
Yes

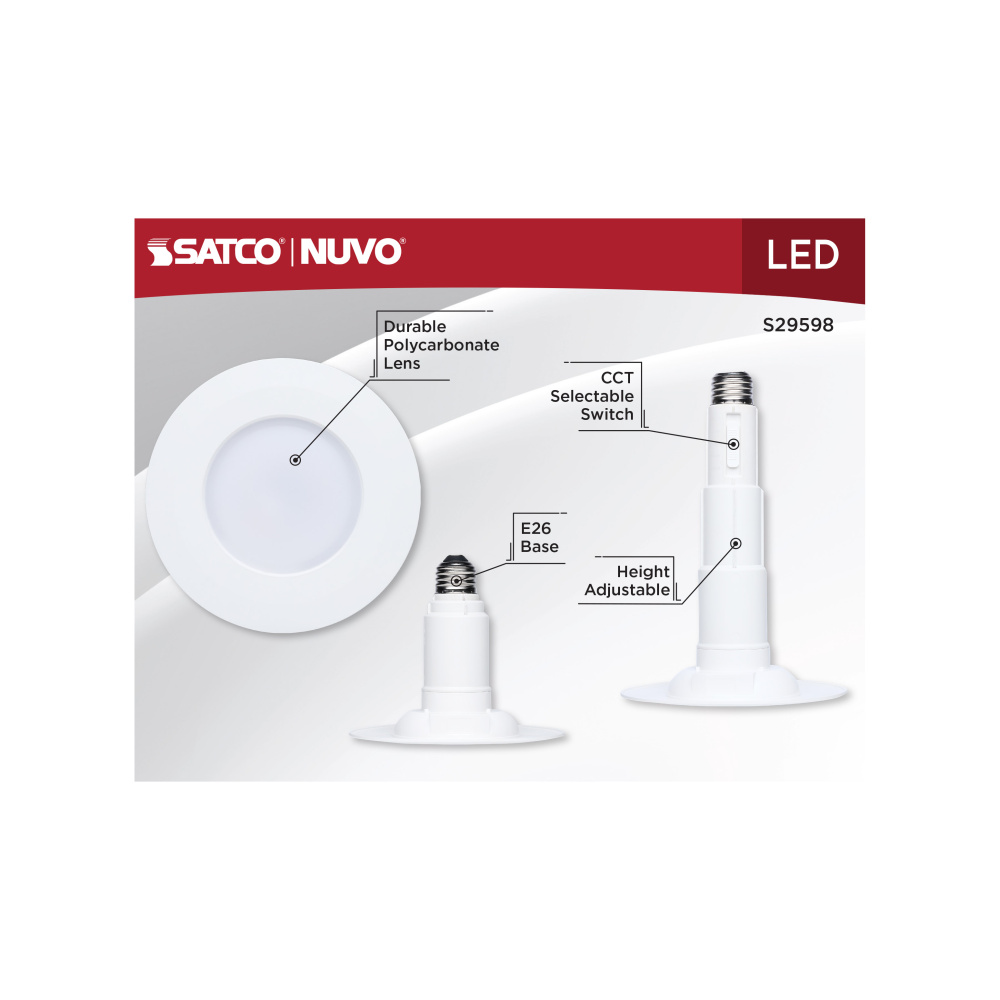

Feature 1:
4" Downlight
Feature 10:
Closet Rated
Feature 2:
500 Lumens
Feature 3:
8.5W, 45W Incandescent Replacement
Feature 4:

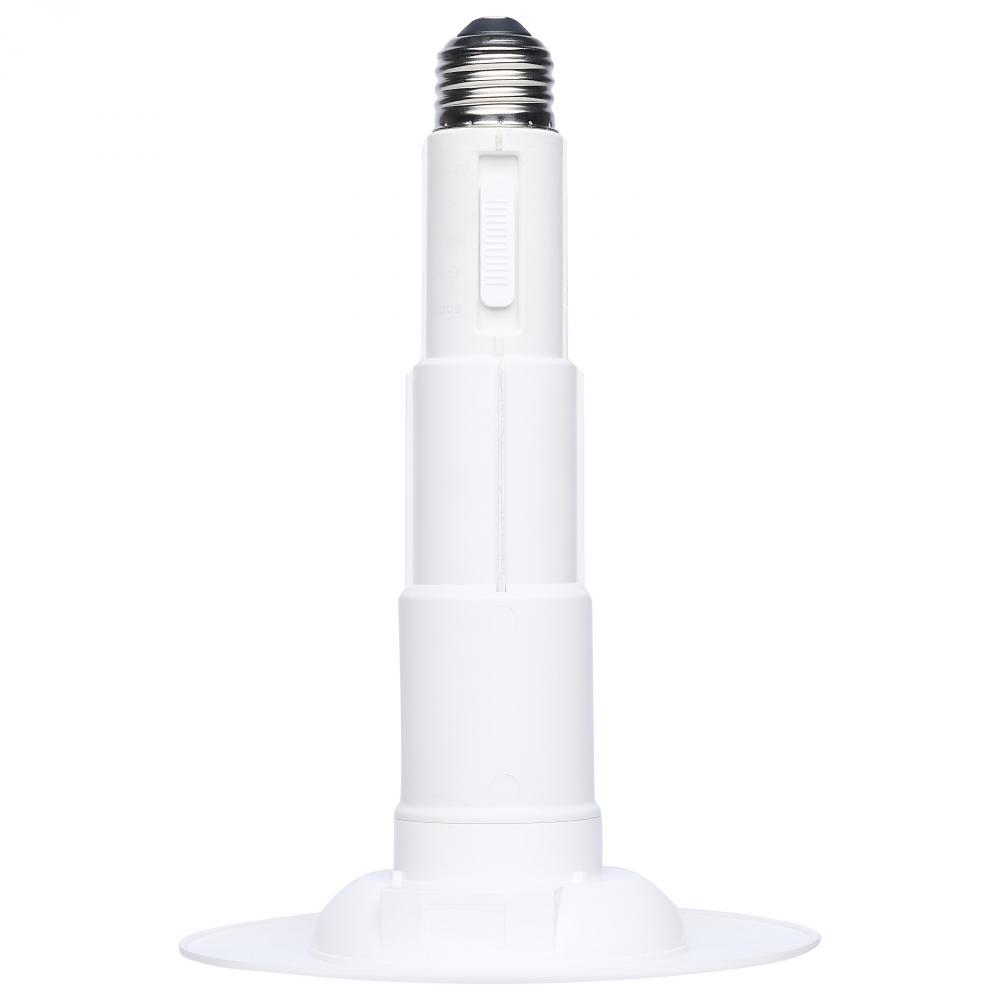

Telescoping Neck
Feature 5:
5-CCT Selectable: 2700K/3000K/3500K/4000K/5000K
Feature 6:
Phase Cut Dimmable Down to 10%
Feature 7:
E26 Base
Feature 8:
IC Rated
Feature 9:
Damp Location Rated
Fixture shape:
Round
Has Camera:
No
Has Emergency Battery:
No
IC Rated:
Yes
Impact Rating (IK):
IK04
Incandescent Equivalent:
45W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
Glossy Frosted
Lens Material:
Polycarbonate (PC)
Long Description:
Designed as a direct replacement for traditional cans and reflector lamps, SATCO NUVO's S29598 4" LED QuickTrim Downlights are the easiest solution to upgrade downlighting on the market. The adjustable neck adapts to a variety of legacy recessed ho
Material:
Polycarbonate (PC)
NEC Compliance:
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.7
Quantity In Pack:
2
R9 Value:
48
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Designed as a direct replacement for traditional cans and reflector lamps, SATCO NUVO's LED QuickTrim Downlights are the easiest solution to upgrade downlighting on the market. The adjustable neck adapts to a variety of legacy recessed housing depths m
Safety Listing:
cETLus - Classified
SDS class:
LED_Fixture
Short Description:
8.5WLED/4''TRIM/5CCT/120V/2PK
Sloped Ceiling Compatible:
No
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<100%
Trim Color:
White
Trim Material:
Polycarbonate (PC)
Wattage Selectable:
No
Weight Lb.:
0.25
