Part Number: 1UCTLZ / Vendor ID Number: 104 / Custom:

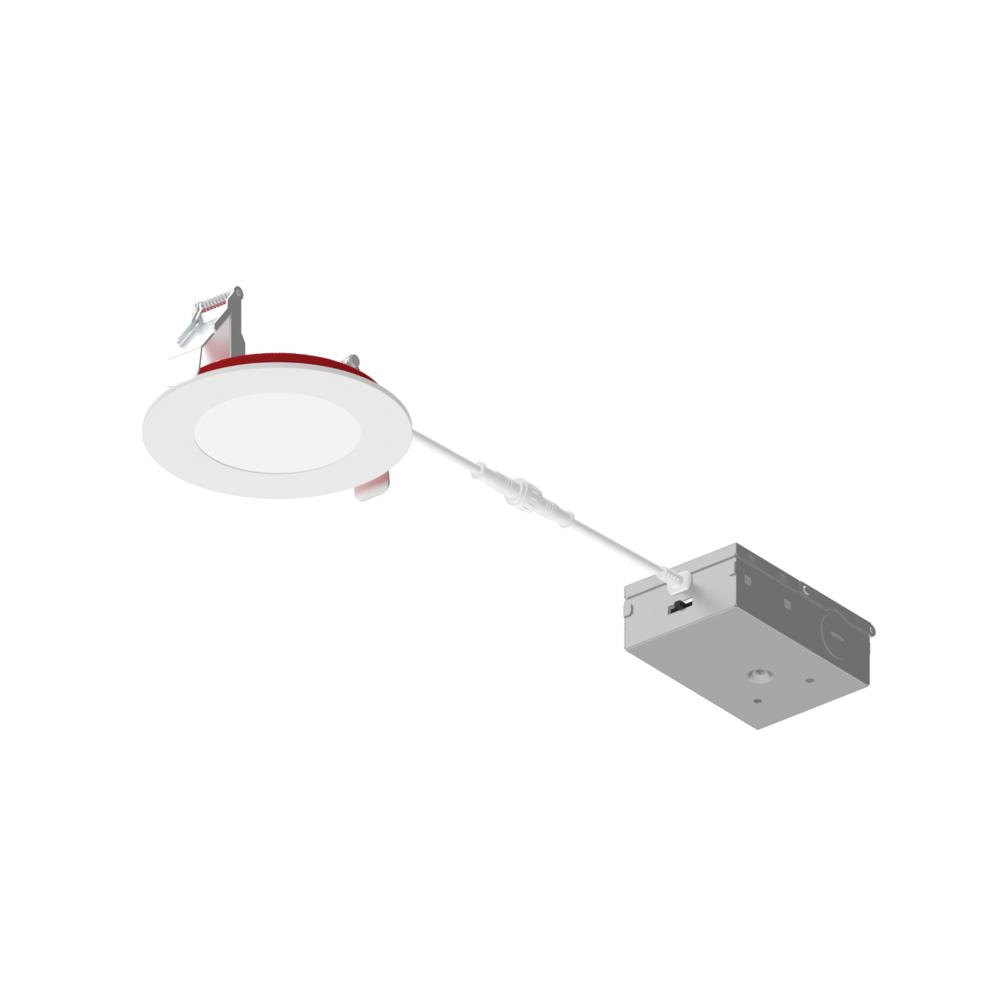

4" Fire Rated Can-less Flat LED Downlight, Selectable CCT, 1200lm / 12W, Matte Powder White

4" Fire Rated Can-less Flat LED Downlight, Selectable CCT, 1200lm / 12W, Matte Powder White

49
90
Pack Of: 1
  • Manufacturer has 2 items available.
Qty
Product Specification
Dimensions
Height: 2.44"
Width: 5.63"
Finish
Matte Powder White
Product Overview
4" Fire-rated can-less recessed LED downlights are ETL listed, tested and certified to UL 263 & ASTM E119 for 2-hour fire rating. Wafer design allows luminaires to be installed in shallow plenums and includes a selectable five color temperature switch. Multi-piece construction provides an extra layer of protection to prevent the spread of fire above the ceiling within a two-hour rating.
Input Voltage: 120V
Lumens / Wattage: 1200lm / 12W
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: Triac or ELV
Finish: Matte Powder White
Accessories: New construction frame-ins ordered separately (NF-R246 or NFC-R430)
Rating: Wet Locations
Listing: cETLus Listed and Certified for 2-Hour Rating to UL 263, ASTM E119, & CAN/ULC S101
Product Availability
    Item appears to be in stock and ready to ship
Additional Information
1.6
Info & Guides
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Finish:
Matte Powder White
Category:
Recessed
Product Line:
FR01
Est. Shipping Wt.:
3
Length:
22.5
Lumens / Light Output:
1200lm
Ship Carton Height:
5
Ship Carton Length:
5.5
Ship Carton Width:
7.25
Weight:
1.25
CCT:
Selectable CCT (27K / 30K / 35K / 40K / 50K)
CEC Database:
Y
CEC Item Number:
NFRC-R4W1******
CEC Substitute Item:
NFRC-R4W2TWMPW
Contains Battery:
N
Country of Origin:
THA
CRI:
90
DLC Listed:
No
Master Box H:
11
Master Box L:
12
Master Box Qty:
4
Master Box W:
8
Master Box Wt.:
7
Product Family:
Fire Rated
Safety Listing:
cETLus
Wattage:
12W
