Item Sales Info

Part Number: A99WR / Vendor ID Number: 81 / Custom:

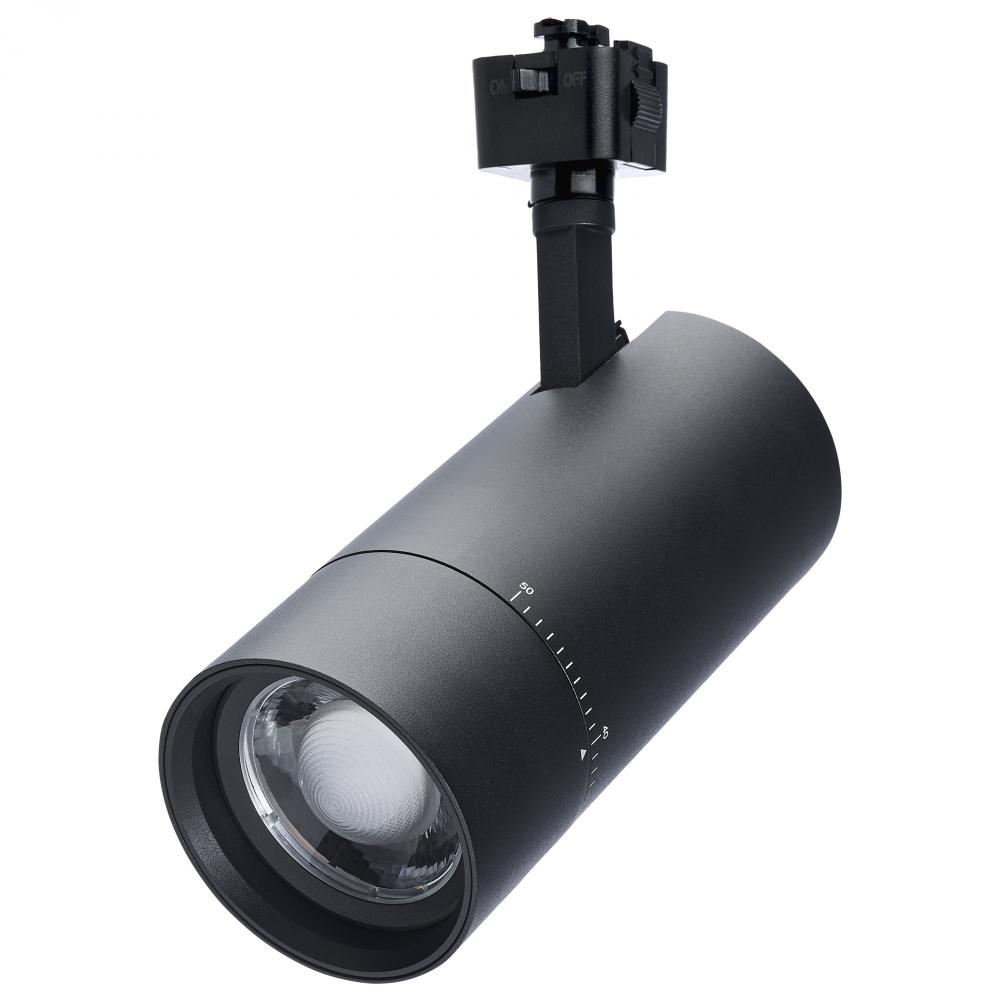

30 Watt LED Track Head; J-Style; 20 to 50 Degree Adjustable Beam Spread; CCT Selectable; Matte Black

30 Watt LED Track Head; J-Style; 20 to 50 Degree Adjustable Beam Spread; CCT Selectable; Matte Black

102

Pack Of: 1

Manufacturer has 382 items available.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

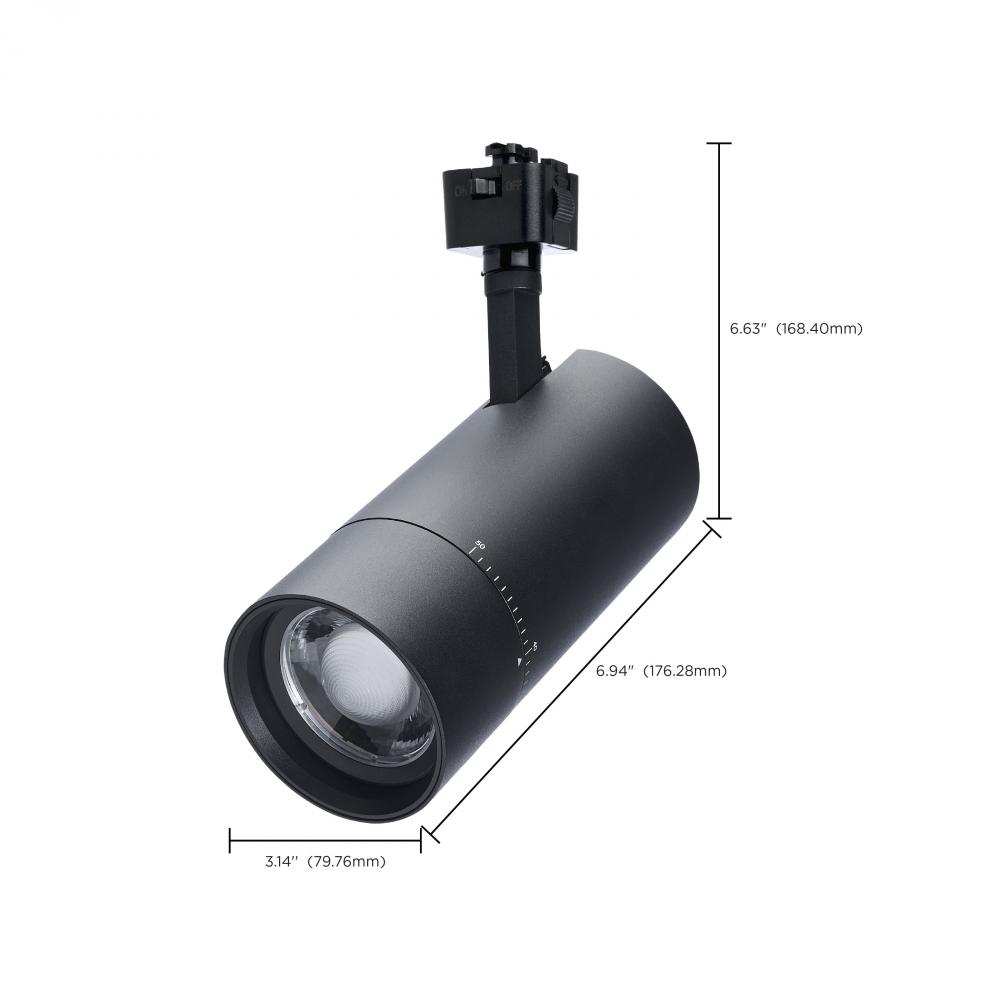

Dimensions

Height: 6.63"

Width: 3.14"

Finish

Matte Black

Product Overview

30 Watt LED Track Head; J-Style; 20 to 50 Degree Adjustable Beam Spread; CCT Selectable; Matte Black Finish

Product Availability

Item appears to be in stock and ready to ship

Technical Details

Details

Category:

Track Ltg.

Subcategory:

Track Heads

Option:

LED

Prop 65 /vendors/vendorImages prop65.png

Finish:

Matte Black

Category:

Track Lighting

Sub Category:

Track Head

Style:

Contemporary

Bulb Volts1:

120V

Avg Rated Hours:

30000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

9.449999999999999

Each Length:

3.78

Each Width:

3.39

Length:

6.94

Lumens:

2100L

Tariff Code:

9405.11.6020

Warranty:

3-Years

Amps:

0.270A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

20-50

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Vietnam

CRI:

90+

Dimmable Function:

120V only

Dimming Type:

Triac

Each Cube:

0.0701

Each Quantity:

Efficacy:

70.00 LPW

FCC Compliant:

Yes

Feature 1:

J-Style Single and 2 Circuit Track Compatible

Feature 2:

Beam Adjustable from 20 to 50 Degrees

Feature 3:

90 CRI High Quality Light

Feature 4:

Matte black finish

Feature 5:

5 CCT Selectable

Feature 6:

Dimmable

Feature 7:

T24 Compliant

Feature 8:

30,000 Life Hours

Feature 9:

3 Year Warranty

Finish Family:

Black

Has Camera:

Has Emergency Battery:

Incandescent Equivalent:

150W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Clear

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO NUVO's TH5042 is a beam adjustable, matte black, 30 watt LED track head designed for compatibility with both Single Circuit and 2 Circuit J-Style track systems, enhancing its flexibility across various installation environments. This fixture feat

Material:

Aluminum / Steel

Mounting Procedure:

Track

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's beam adjustable, CCT selectable LED track head fixtures are now compatible with both Single Circuit and 2 Circuit J-Style track systems, expanding their versatility for a wide range of applications. J-Style track, a popular choice in resid

Safety Listing:

cETLus - Listed

Short Description:

30W BEAM ADJ TRK HEAD J-STYLE

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Track Head Style:

J-Style

Wattage Selectable:

Weight Lb.:

2.04
